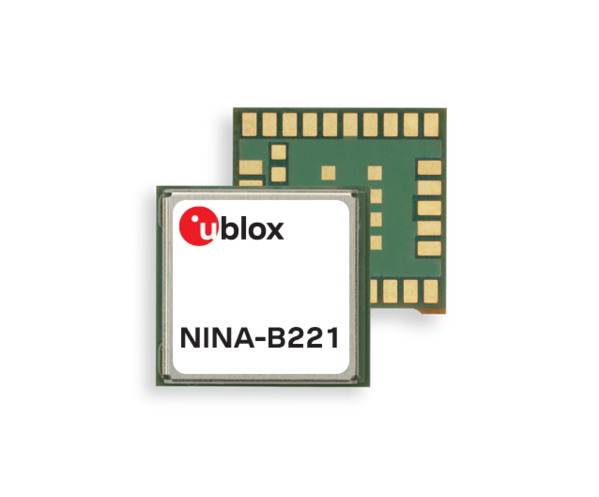

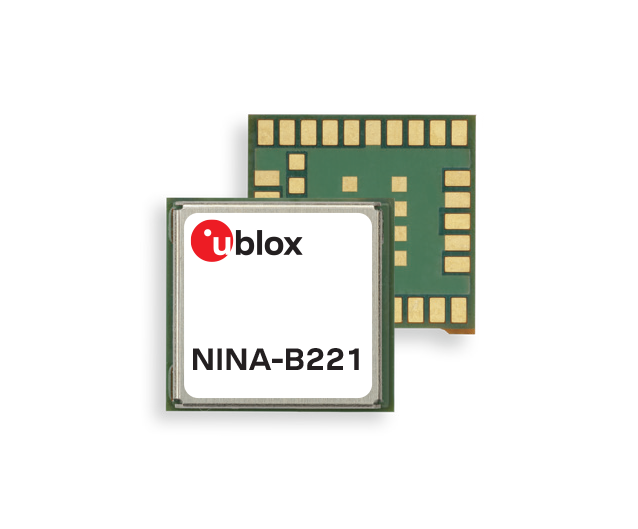

NINA-B221-03B

u-blox*Bluetooth Dual Mode*stand-alone*ant. pin 10*10.6mm*u-blox connectivity S/W
Manufacturer Item No.:
NINA-B221-03B
Item number:
NINA-B221-03B
from 1 pieces 12,15 € / 1 pieces
from 10 pieces 11,30 € / 1 pieces
from 50 pieces 10,02 € / 1 pieces
from 100 pieces 9,00 € / 1 pieces
12,15 € / 1 pieces
Orderable, delivery time approx. 12 weeks
plus Shipping and VAT
Usually ships in 1 to 3 days
Add to Favorites
  • Simultaneous dual-mode Bluetooth
  • u-connect software for accelerated time to market
  • Built-in security with secure boot
  • Small footprint and multiple antenna options
  • Pin compatible with other NINA modules
  • Global certification
Form factor:NINA
Chip:ESP32
Bluetooth Standard:v4.2 (Bluetooth Low Energy and BR/EDR)
Antenna Option:Antenna pin
Type :stand-alone
Software:uConnectXpress
Voltage:3 - 3.6 VDC
max. Range:200 m
max. Throughput:1 Mbit/s
Temperature:-40 to +85 °C
Dimensions:10.6 x 10 x 2.2 mm
UART:1
GPIO:13
S/W Features:AT command support, Extended data mode protocol, Factory programmed MAC address(es), Low energy serial port service, Secure boot, Simultaneous GATT server and client
