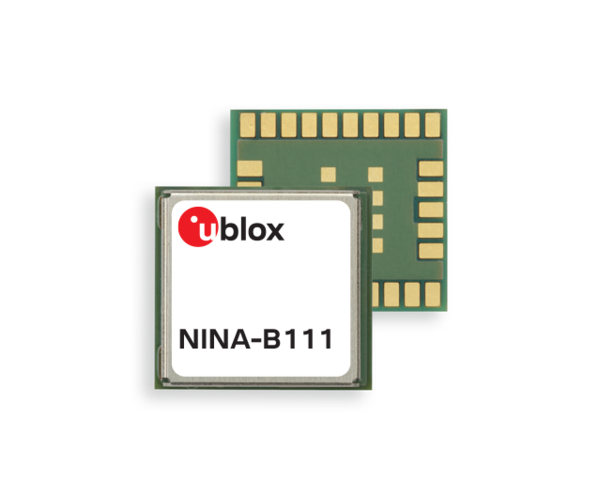

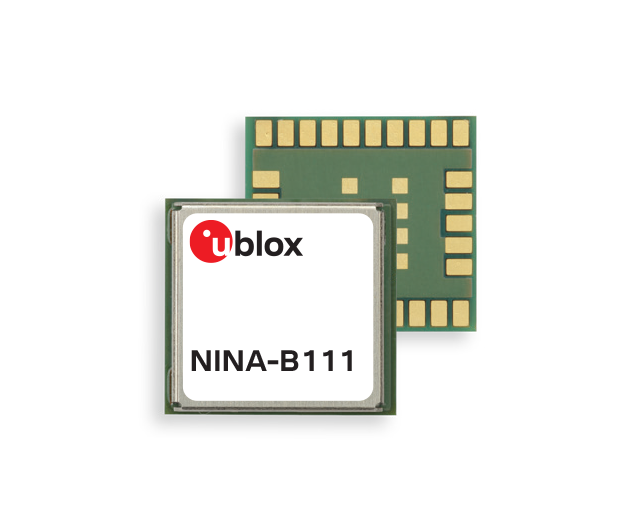

NINA-B111-04B

u-blox*Bluetooth 5.0 LE Module*antenna pad nRF52832*10*10mm*u-connectXpress F/W 5
Manufacturer Item No.:
NINA-B111-04B
Item number:
NINA-B111-04B
Choose Variant:
NINA-B111-04B
NINA-B111-05B
NINA-B111-03B
NINA-B111-04B
from 100 pieces 6,11 € / 1 pieces
6,11 € / 1 pieces
Orderable, delivery time approx. 8 weeks
plus Shipping and VAT
Usually ships in 1 to 3 days
Add to Favorites
  • Bluetooth 5
  • u-connect software for accelerated time to market
  • Option to use open CPU for customer applications
  • Hardware optimized for performance and low power consumption
  • Pin compatible with other NINA modules
  • Multiple antenna options
Form factor:NINA
Voltage:1.7 - 3.6 VDC
Chip:nRF52832
Bluetooth Standard:v5.0 (Bluetooth Low Energy)
max. Range:350 m
max. Throughput:0.8 Mbit/s
Antenna Option:Antenna pin
Temperature:-40 to +85 °C
Dimensions:10.6 x 10 x 2.2 mm
UART:1
GPIO:7
S/W Features:AT command support, Bluetooth high speed (LE 2M PHY), Bluetooth mesh, Extended data mode protocol, Factory programmed MAC address(es), Low energy serial port service, Simultaneous GATT server and client
