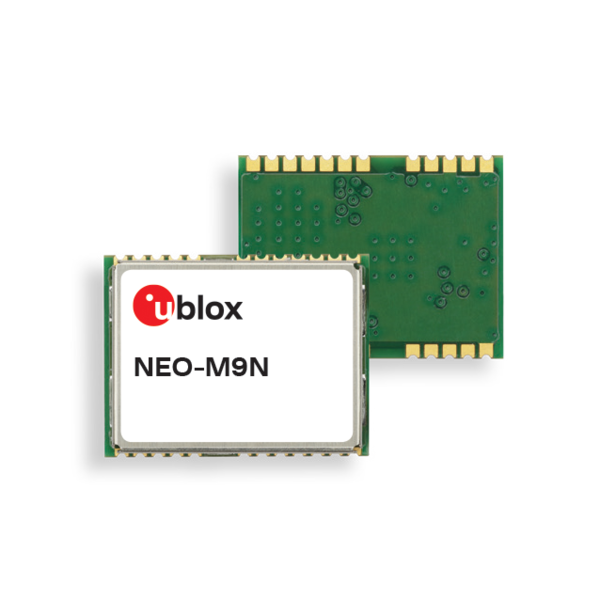

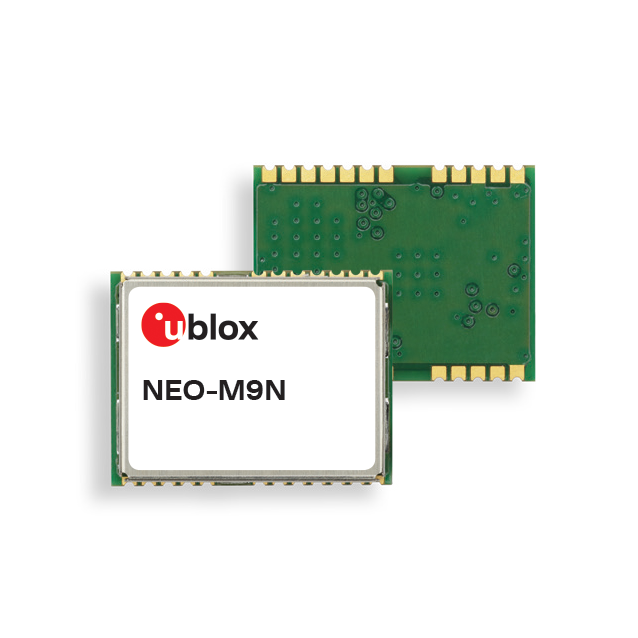

NEO-M9N-00B
u-blox M9 GNSS Module*TCXO*Flash*SAW*LNA* LCC*12x16mm*250 pcs/reel
Manufacturer Item No.:
NEO-M9N-00B
Item number:
NEO-M9N-00B
from 1 pieces
21,77 € / 1 pieces
from 10 pieces
18,66 € / 1 pieces
from 50 pieces
16,33 € / 1 pieces
from 100 pieces
13,06 € / 1 pieces
Add to Favorites
- Maximum position availability with concurrent reception of 4 GNSS
- Advanced spoofing and jamming detection
- Excellent RF interference mitigation
- Pin-compatible with previous NEO products
| Form factor: | NEO |
|---|---|
| Chip: | u-blox M9 |
| GNSS supported: | GPS / QZSS, Galileo, BeiDou, GLONASS |
| GNSS Bands: | L1 |
| GNSS Oscillator: | TCXO |
| Memory: | Flash |
| Temperature: | -40 to +85 °C |
| Dimensions: | 16 x 12.2 x 2.4 mm |
| Voltage: | 2.7 - 3.6 VDC |
| UART: | 1 |
| USB: | 1 |
| I2C: | 1 |
| SPI: | 1 |
| S/W Features: | Antenna supervisor, Data logging, FW update via serial interface, Internal oscillator, RTC crystal |
