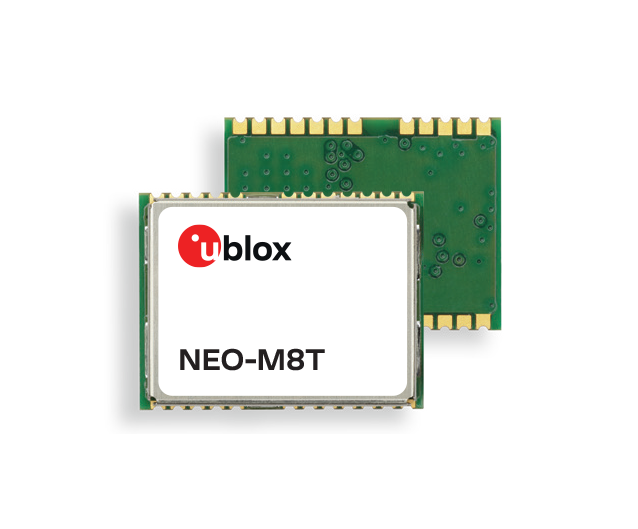

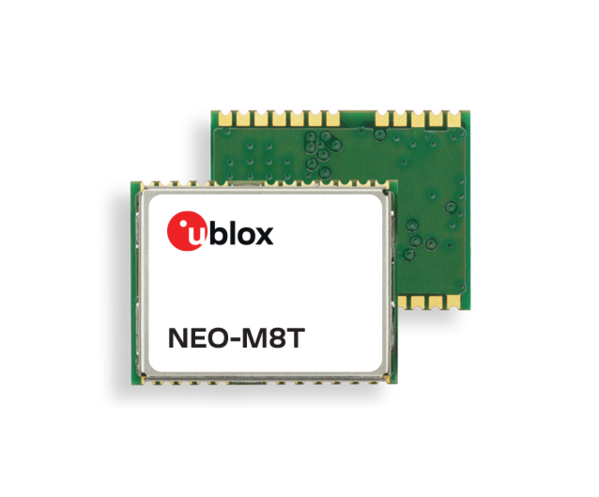

NEO-M8T-0
u-blox M8*NEO*Concurrent GNSS*Precision Timing* TCXO*Flash*RAW Data*12x16mm*250 pcs/reel
Manufacturer Item No.:
NEO-M8T-0
Item number:
NEO-M8T-0
from 1 pieces
71,72 € / 1 pieces
from 10 pieces
65,57 € / 1 pieces
from 50 pieces
60,39 € / 1 pieces
from 100 pieces
48,32 € / 1 pieces
Add to Favorites
Concurrent reception of GPS/QZSS, GLONASS, BeiDou, Galileo
- Market leading acquisition and tracking sensitivity
- Optimized accuracy and availability with Survey-in and single-satellite timing
- Minimized power consumption with low duty-cycle operation
- Maximized reliability with integrity monitoring and alarms
- Backward compatible with LEA-5T, LEA-6T and NEO-6T
| Form factor: | NEO |
|---|---|
| Chip: | u-blox M8 |
| GNSS supported: | GPS / QZSS, Galileo, BeiDou, GLONASS |
| GNSS Bands: | L1 |
| GNSS Oscillator: | TCXO |
| Memory: | Flash |
| Antenna Option: | Antenna pin |
| Temperature: | -40 to +85 °C |
| Dimensions: | 22.4 x 17 x 2.4 mm |
| Voltage: | 2.7 - 3.6 VDC |
| UART: | 1 |
| USB: | 1 |
| I2C: | 1 |
| SPI: | 1 |
| S/W Features: | Additional LNA, Additional SAW, Built-in sensor, RTC crystal |
