NEO-M8M-0

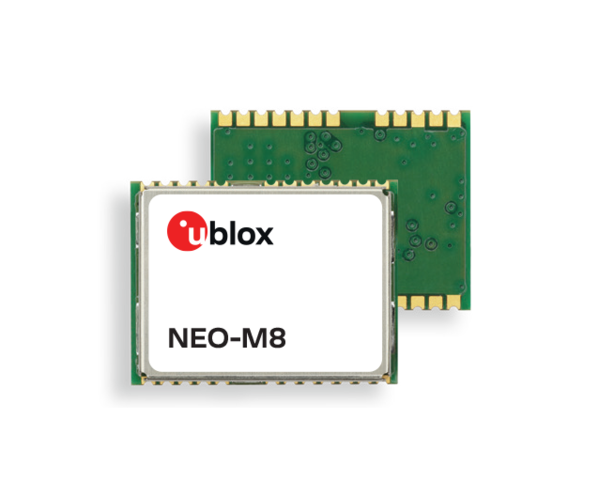

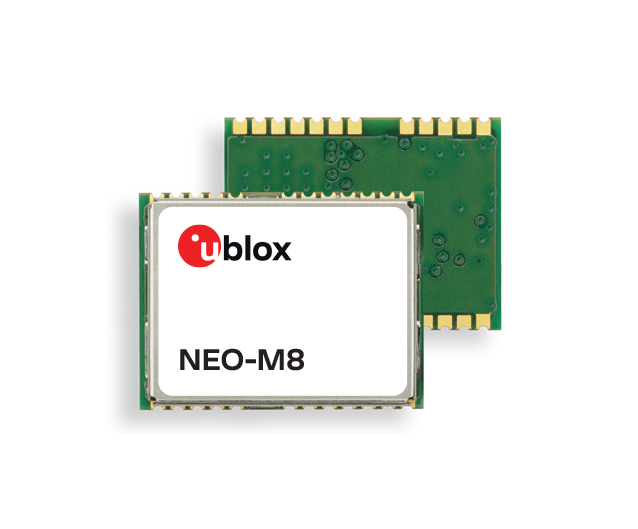

u-blox M8 GNSS Module*Crystal*ROM*12x16mm 250 pcs/reel*
Manufacturer Item No.:
NEO-M8M-0
Item number:
NEO-M8M-0
from 100 pieces
11,20 € / 1 pieces
Add to Favorites
- Concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)
- Industry leading 167 dBm navigation sensitivity
- Security and integrity protection
- Supports all satellite augmentation systems
- Advanced jamming and spoofing detection
- Product variants to meet performance and cost requirements
- Backward compatible with NEO-7 and NEO-6 families
| Form factor: | NEO |
|---|---|
| Chip: | u-blox M8 |
| GNSS supported: | BeiDou, Galileo, GLONASS, GPS / QZSS |
| GNSS Bands: | L1 |
| GNSS Oscillator: | Crystal |
| Memory: | ROM |
| Antenna Option: | Antenna pin |
| Temperature: | -40 to +85 °C |
| Dimensions: | 16 x 12.2 x 2.4 mm |
| Voltage: | 1.65 - 3.6 VDC |
| UART: | 1 |
| USB: | 1 |
| I2C: | 1 |
| SPI: | 1 |
| S/W Features: | RTC crystal |
