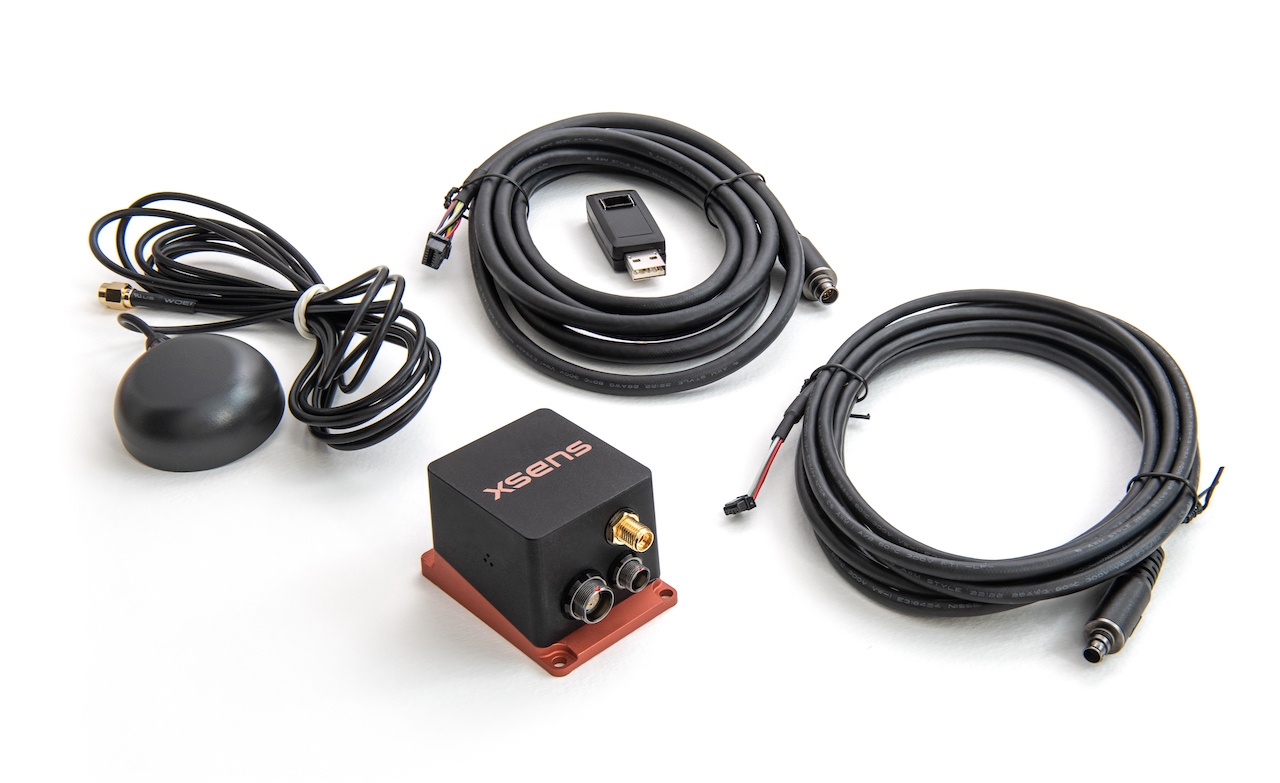

Form factor: | Starter Kit |
---|---|
Type : | RTK GNSS/INS |
Sensor Fusion - Roll, Pitch: | 0.2 deg RMS |
Sensor Fusion - Yaw/Heading: | 0.5 deg RMS |
Sensor Fusion - Position: | <1 cm CEP |
Gyroscope - Full Range: | 2000 deg/s |
Gyroscope - In-run bias stability: | 8 deg/h |
Gyroscope - Bandwidth: | 520 Hz |
Accelerometer - Full Range: | 10 g |
Accelerometer - In-run bias stability: | 10/15 µg (xy/z) |
Accelerometer - Bandwidth: | 500 Hz |
Magnetometer - Full Range: | ± 8 G |
Magnetometer - Resolution: | 0.25 mG |
Barometer - Full Range: | 300 - 1250 hPa |
Barometer - Resolution: | ~ 0.5 m |
Protocols: | Xbus, ASCII (NMEA), CAN RTCM 3.3 |
USB: | via Converter |
CAN: | 1 |
RS232: | 1 |
Voltage: | 4.5 - 24 VDC |
Temperature: | -40 to +85°C |
Dimensions: | 56.5 x 40.9 x 36.8 mm |
S/W Features: | MT Manager, Magnetic Field Mapper |
