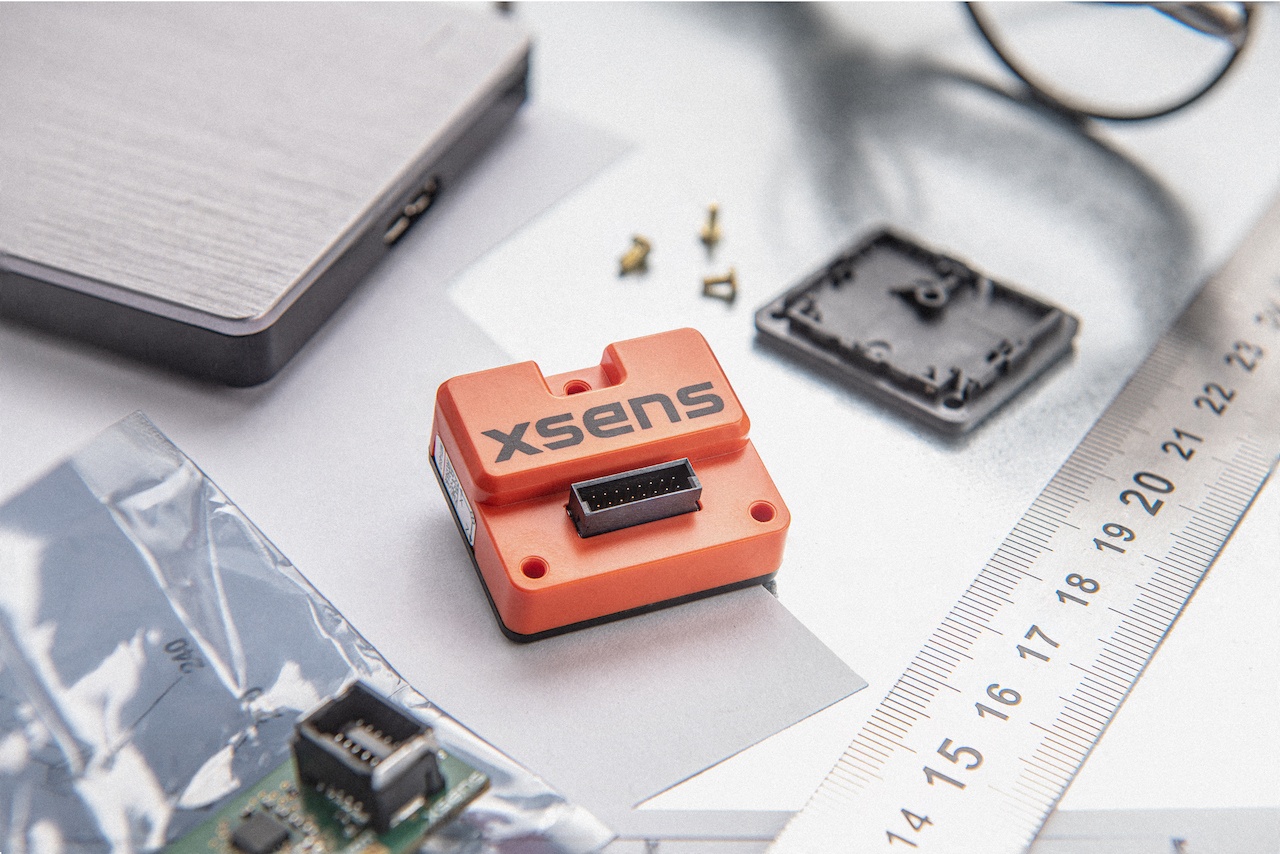

| Form factor: | MTI-600 |
|---|
| Type : | IMU |
|---|
| Gyroscope - Full Range: | 2000 deg/s |
|---|
| Gyroscope - In-run bias stability: | 8 deg/h |
|---|
| Gyroscope - Bandwidth: | 520 Hz |
|---|
| Accelerometer - Full Range: | 10 g |
|---|
| Accelerometer - In-run bias stability: | 10/15 µg (xy/z) |
|---|
| Accelerometer - Bandwidth: | 500 Hz |
|---|
| Magnetometer - Full Range: | ± 8 G |
|---|
| Magnetometer - Resolution: | 0.25 mG |
|---|
| Barometer - Full Range: | 300 - 1250 hPa |
|---|
| Barometer - Resolution: | ~ 0.5 m |
|---|
| Protocols: | Xbus, ASCII (NMEA) or CAN |
|---|
| UART: | 1 |
|---|
| CAN: | 1 |
|---|
| RS232: | 1 |
|---|
| Voltage: | 4.5 - 24 VDC |
|---|
| Temperature: | -40 to +85°C |
|---|
| Dimensions: | 31.5 x 28 x 13 mm |
|---|
| S/W Features: | MT Manager, Magnetic Field Mapper |
|---|
