MTI-3-5A-DK
MTi-3-DK AHRS/VRU/IMU Development Kit*16G*HW v5, 2000°/s*SPI / I2C / UART
Manufacturer Item No.:
MTI-3-5A-DK
Item number:
MTI-3-5A-DK
Add to Favorites
Contents:

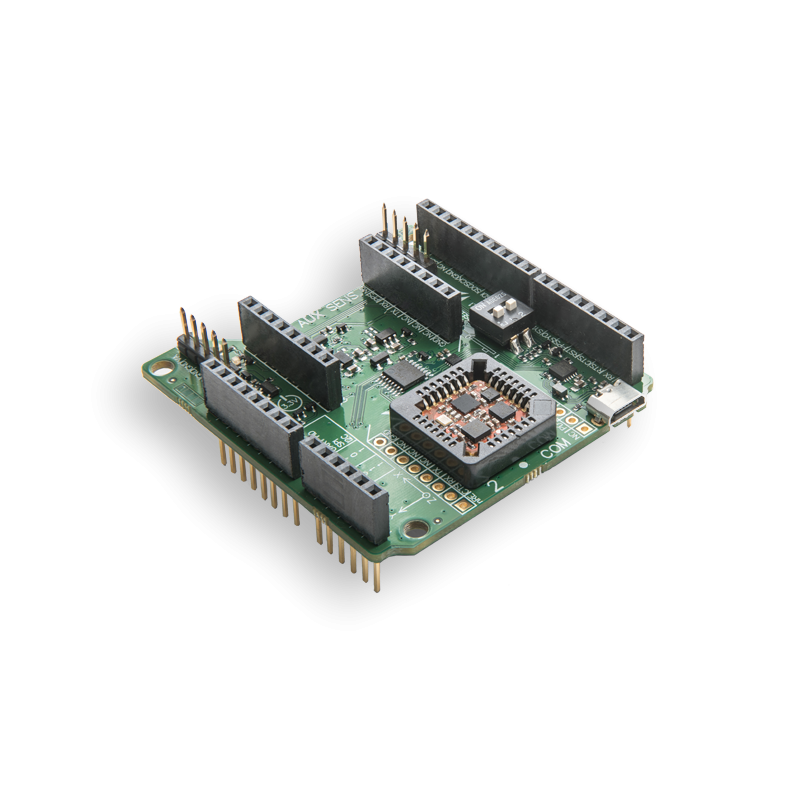

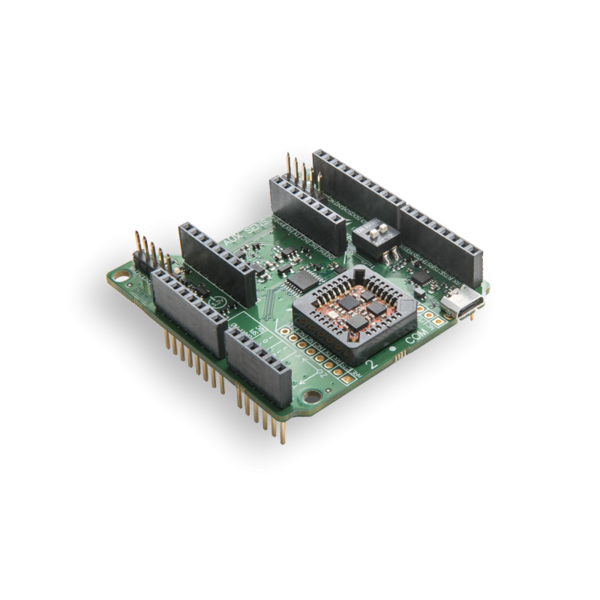

MTi 1-series Development Board
MTi-3 (mounted)
USB cable
MT Software Suite
MTi 1-series Development Board
MTi-3 (mounted)
USB cable
MT Software Suite
| Accelerometer - Bandwidth: | 230 Hz |
|---|---|
| Accelerometer - In-run bias stability: | 40 µg |
| Accelerometer - Full Range: | 16 g |
| Form factor: | Development Kit |
| Sensor Fusion - Roll, Pitch: | 0.5 deg RMS |
| Sensor Fusion - Yaw/Heading: | 2 deg RMS |
| Gyroscope - Bandwidth: | 230 Hz |
| Gyroscope - In-run bias stability: | 6 deg/h |
| Gyroscope - Full Range: | 2000 deg/s |
| I2C: | 1 |
| Magnetometer - Full Range: | ± 8 G |
| Magnetometer - Resolution: | 0.25 mG |
| Protocols: | Xbus |
| SPI: | 1 |
| S/W Features: | MT Manager, Magnetic Field Mapper |
| Type : | AHRS |
| UART: | 1 |
| USB: | 1 |
