MTI-1-5A-T
MTi-1 IMU Module*SMD*16G*2000°/s*6°/h*HW v5, SPI/I2C/UART*12.1 x 12.1 x 2.55 mm*-40 to +85°C
Manufacturer Item No.:
MTI-1-5A-T
Item number:
MTI-1-5A-T
Choose Variant:
MTI-1-5A-T
Add to Favorites
Calibrated data
The MTi-1 is a self-contained inertial measurement unit (IMU) that provides calibrated data on the rate of turn, the acceleration and the magnetic field – all in 3D
Robust and reliable
The MTi-1 calibrates for several biases and parameters, such as temperature. Robust and reliable, it integrates easily with high-volume applications. Best of all, it’s the most cost-effective product for surface mountable device (SMD) integration.
Smallest industrial grade form factor

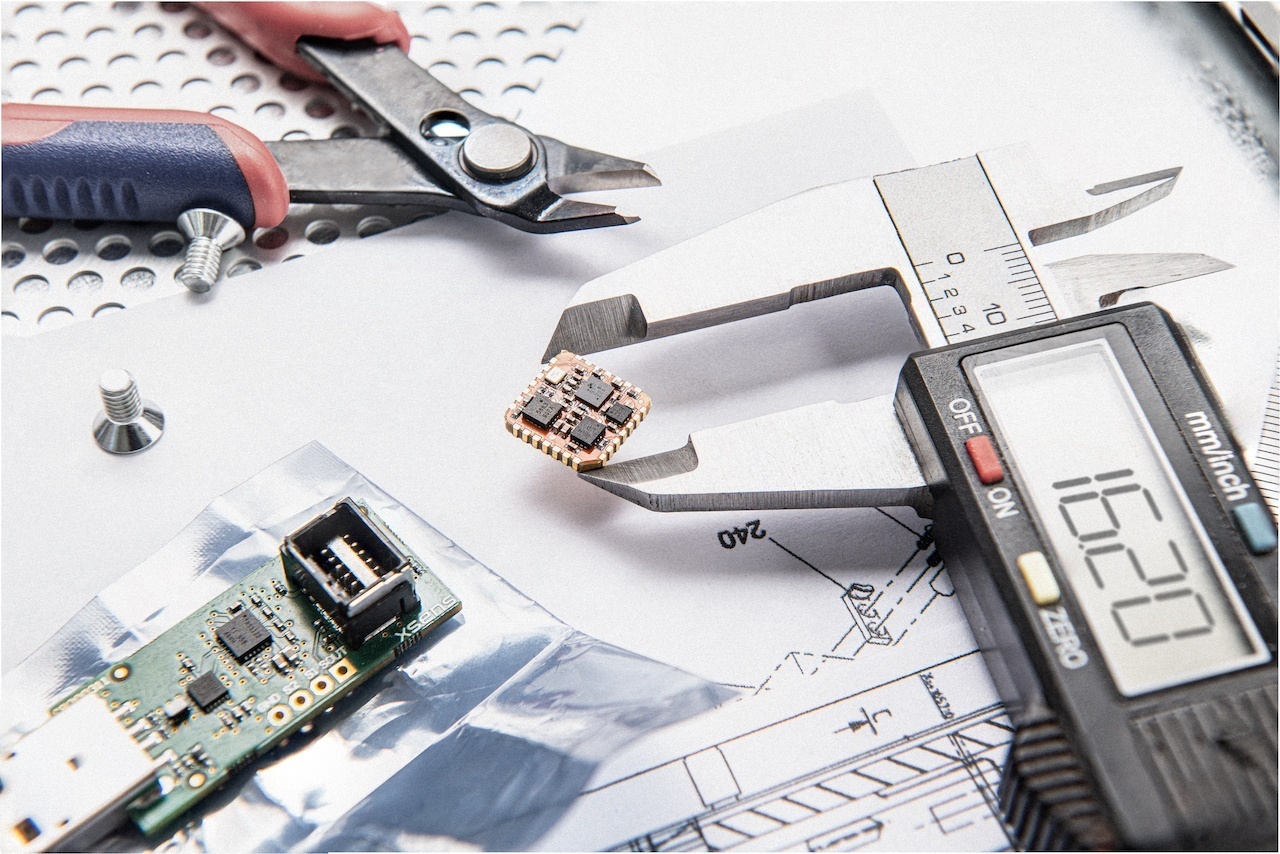

As part of the MTi 1-series, it is among the smallest of its kind available, with each module measuring only 12.1 × 12.1 mm and weighing <1 g.
The MTi-1 is a self-contained inertial measurement unit (IMU) that provides calibrated data on the rate of turn, the acceleration and the magnetic field – all in 3D
Robust and reliable
The MTi-1 calibrates for several biases and parameters, such as temperature. Robust and reliable, it integrates easily with high-volume applications. Best of all, it’s the most cost-effective product for surface mountable device (SMD) integration.
Smallest industrial grade form factor
As part of the MTi 1-series, it is among the smallest of its kind available, with each module measuring only 12.1 × 12.1 mm and weighing <1 g.
| Accelerometer - Bandwidth: | 230 Hz |
|---|---|
| Accelerometer - In-run bias stability: | 40 µg |
| Accelerometer - Full Range: | 16 g |
| Dimensions: | 12.1 x 12.1 x 2.55 mm |
| Form factor: | MTI-1 |
| Gyroscope - Bandwidth: | 230 Hz |
| Gyroscope - In-run bias stability: | 6 deg/h |
| Gyroscope - Full Range: | 2000 deg/s |
| I2C: | 1 |
| Magnetometer - Full Range: | ± 8 G |
| Magnetometer - Resolution: | 0.25 mG |
| Protocols: | Xbus |
| SPI: | 1 |
| S/W Features: | MT Manager, Magnetic Field Mapper |
| Temperature: | -40 to +85°C |
| Type : | IMU |
| UART: | 1 |
| Voltage: | 2.8 - 3.6 VDC |
