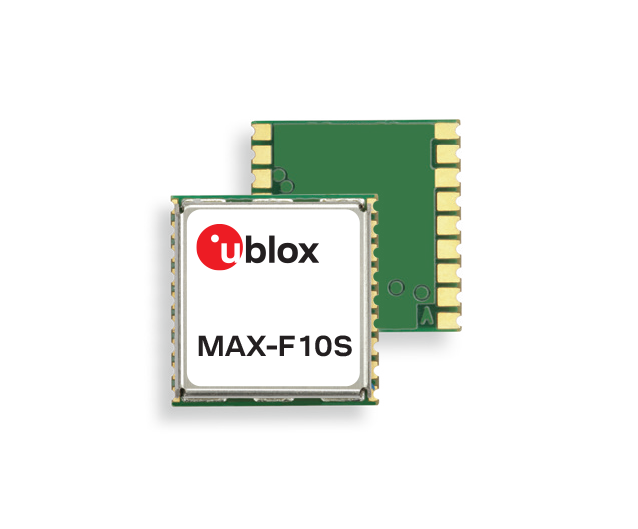

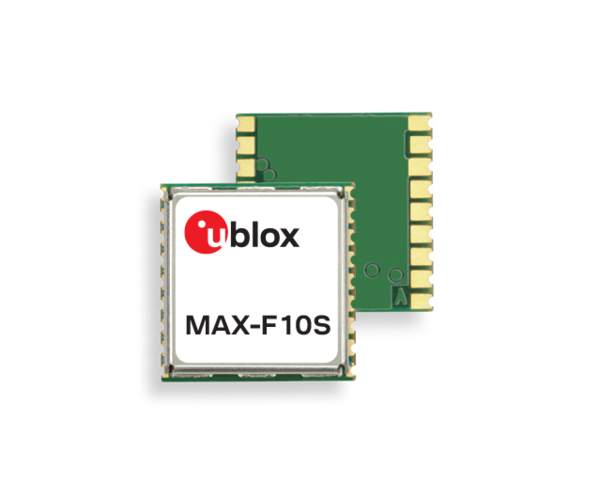

MAX-F10S-00B
u-blox F10 GNSS LCC Module*TCXO*ROM*SAW*LNA*L1/L5
9.7x10mm*500 pcs/reel
9.7x10mm*500 pcs/reel
Manufacturer Item No.:
MAX-F10S-00B
Item number:
MAX-F10S-00B
from 1 pieces
17,66 € / 1 pieces
from 10 pieces
16,14 € / 1 pieces
from 50 pieces
14,13 € / 1 pieces
from 100 pieces
11,30 € / 1 pieces
from 250 pieces
9,42 € / 1 pieces
Add to Favorites
u-blox F10 standard precision GNSS module
L1/L5 dual-band GNSS receiver for meter-level accuracy in urban environments
- Effective multipath mitigation to boost urban accuracy
- Exceptional RF interference immunity with co-located cellular modems
- Proven excellent performance, even with small antennas
- Pin-compatible with previous MAX products for easy migration
| Form factor: | MAX |
|---|---|
| Chip: | u-blox F10 |
| GNSS Bands: | L1 / L5 |
| GNSS Oscillator: | TCXO |
| Memory: | ROM |
| GNSS supported: | GPS / QZSS, Galileo, BeiDou, GLONASS |
| UART: | 1 |
| I2C: | 1 |
| Antenna Option: | Antenna pin |
| Voltage: | 1.76 - 3.6 VDC |
| Dimensions: | 10.1 x 9.7 x 2.5 mm |
| Temperature: | -40 to +85 °C |
