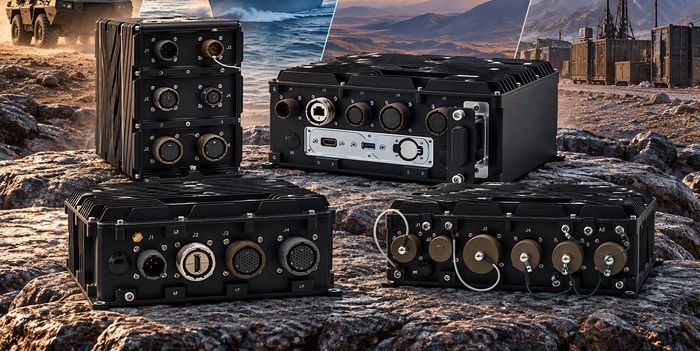

Product Series

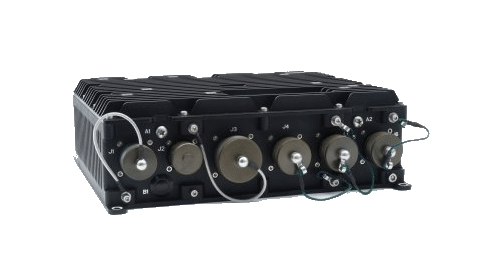

| Rugged system with scalable performance and generous I/O expansion capability. SabreCom-JSP is Diamond’s new rugged platform for applications requiring custom I/O. Three connector positions are provided to support standard I/O options as well as customer-specific I/O. High-speed interfaces such as HDMI and USB 3.0 are supported via dedicated connectors. I/O expansion can be provided by a combination of PCIe/104 and PCIe minicard I/O modules. The system is based on Diamond’s Jasper SBC which utilizes a COM Express CPU core. This design yields several important benefits. The system can be configured for a wide range of performance and power consumption levels by choosing from a variety of prequalified COMs. If the currently chosen COM reaches end of life, the program’s lifetime can be easily extended by selecting a newer one, avoiding the cost and risk associated with purchasing obsolete / EOL products or designing a new system that is backward compatible. |
 |
Shortform Information about the specification is available here

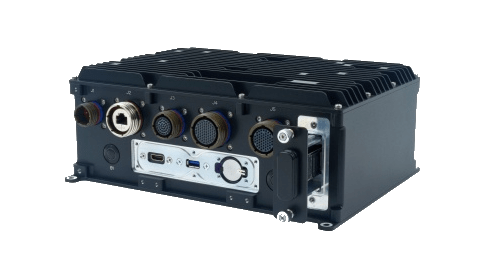

| Rugged Integrated Computer + Managed Ethernet Switch with Removable Storage SabreCom-C1 offers rugged high-performance, computing and Ethernet switching in a single enclosure with enhanced features, including customizable I/O expansion and removable solid state storage. Compute Subsystem The system architecture supports long-term product availability and performance scalability by use of COM Express CPU modules. Processor options include Intel Core i7 and Xeon 11th and 13th generation families, and mass storage capacity is up to 2TB. Choose from Windows 10, Windows 11, and Linux OS. The use of COM Express modules enables performance scalability, earlier access to the latest processors, well as lifecycle extension and protection from obsolescence. If the selected processor reaches end of life, a new COM with a different processor can be easily substituted with no mechanical change and usually very minimal reconfiguration of the OS drivers. A range of COMs and processors are already validated and available as ordering options. Customer requests for specific processors or COM vendors can also be accommodated with a nominal NRE charge for validation testing and OS support. Integrated Managed Ethernet Switch Ethernet switching consists of a 14-port Layer 3 managed gigabit Ethernet switch with 11 1GbE copper ports and 1 or 2 10Gb ports available on the front panel. The 12th 1Gb port connects the switch to one of the two 1Gb Ethernet ports on the embedded computer. The 10GbE ports are available with various options: A single copper port can be brought out on an RJFTV style rugged connector with an RJ-45 jack contained within a 38999-style shell. Alternatively an M12 X-coded connector can be used for 2 10Gb copper ports, or 2 single-mode / multimode fiber ports can be provided with an XBeam connector. The switch is managed with built-in Layer 3 routing/switching software accessible via any Ethernet port or a dedicated serial port. For more details please see the Ethernet Switch tab on this page. |
 |
Shortform Information about the specification is available here

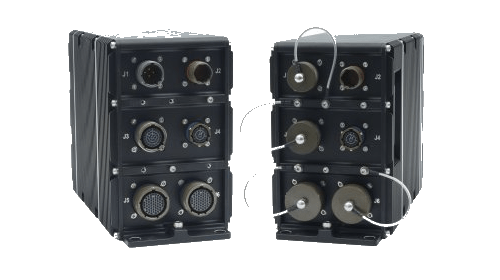

| Rugged Integrated Mission Computer with Core i7 / Xeon SBC + Managed Gigabit Ethernet Switch SabreCom-300 series systems combine a full-featured x86 SBC with a managed Ethernet switch in a rugged, sealed enclosure designed to withstand the harshest of environments. All boards and components are tested or designed to meet MIL-STD-202 and -810 levels of shock and vibration. The flexible architecture supports multiple options for SBC configuration, solid-state mass storage, operating system, Ethernet switch, power supply, and I/O: |
 |
Shortform Information about the specification is available here
Applications
• AI inference
• Autonomous systems
• Robotics
• Computer vision
• Surveillance
• UAVs
• Ground vehicles
• Industrial AI
Features
• Solid-body aluminum CNC construction
• MIL-DTL-38999 connectors
• IP67 environmental protection
• -40 to +85 deg. C or similar operating temperature
• MIL-STD-461, -704, and -1275 compliant power
• Impressive I/O features
• High degree of configurability and customizability
• Short leadtimes and competitive prices
SabreCom computers are based on the Jasper SBC utilizing COM Express modules with 11th / 13th generation Core i7 / Xeon processors for maximum performance scalability and product lifetime. The built-in I/O can be expanded with user choice of minicard and PCIe/104 I/O modules utilizing built-in I/O connectors to eliminate enclosure redesign efforts.
• MIL-DTL-38999 connectors
• IP67 environmental protection
• -40 to +85 deg. C or similar operating temperature
• MIL-STD-461, -704, and -1275 compliant power
• Impressive I/O features
• High degree of configurability and customizability
• Short leadtimes and competitive prices
SabreCom computers are based on the Jasper SBC utilizing COM Express modules with 11th / 13th generation Core i7 / Xeon processors for maximum performance scalability and product lifetime. The built-in I/O can be expanded with user choice of minicard and PCIe/104 I/O modules utilizing built-in I/O connectors to eliminate enclosure redesign efforts.
