WINSTAR: WFM0103A2TABASNN000 - 1.03-inch 128x128 Reflective MIP Display Module

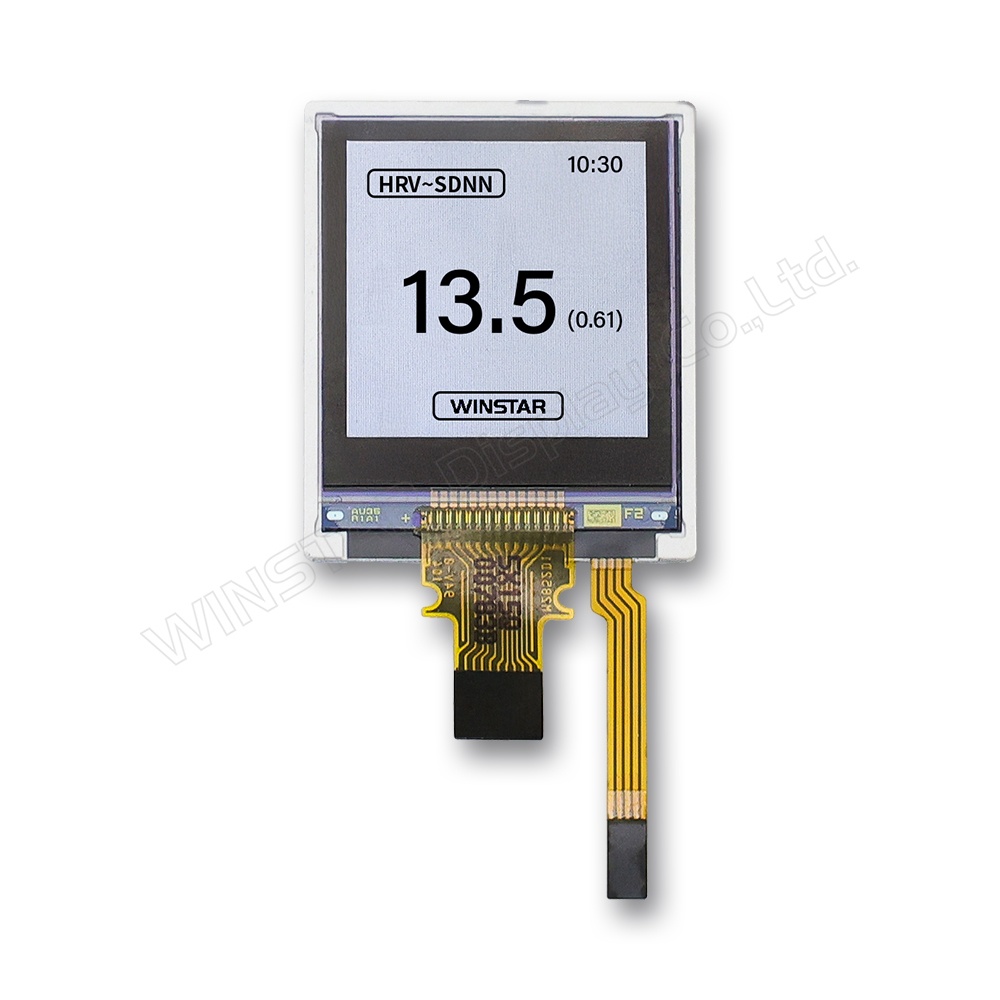

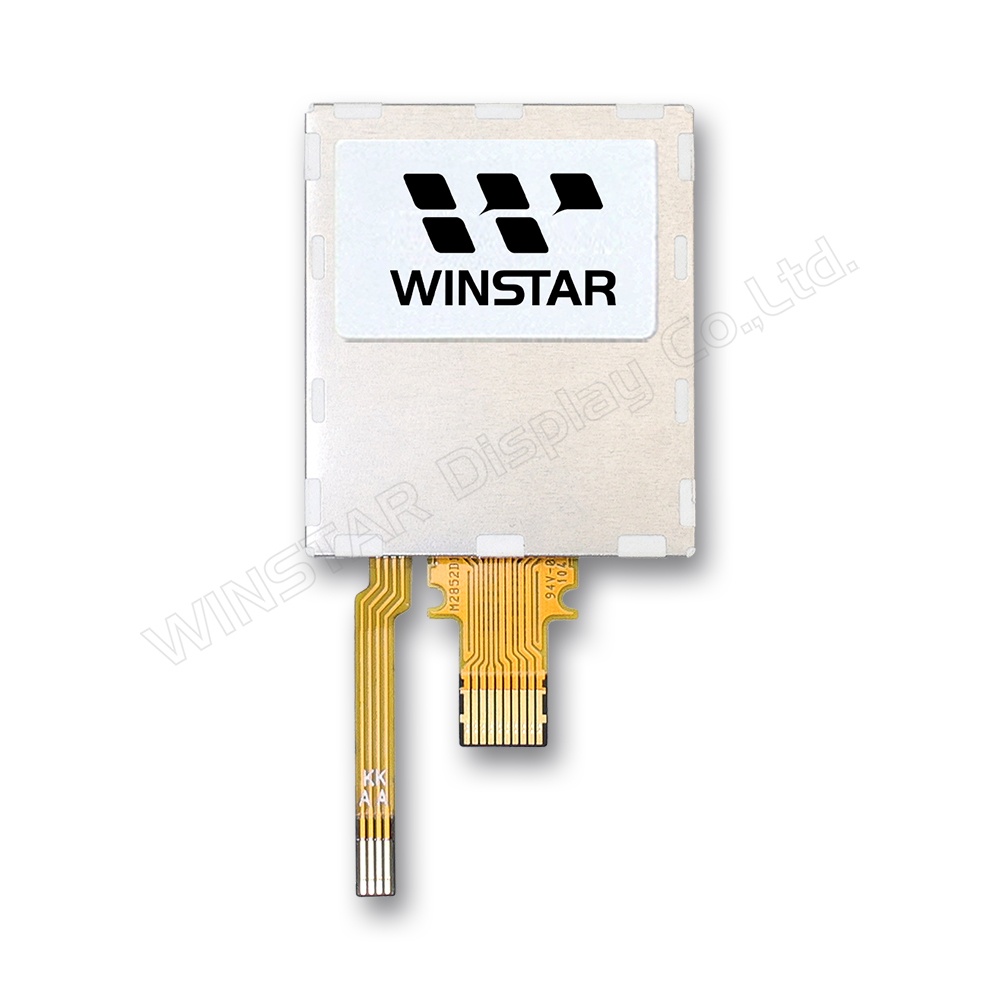

The WFM0103A2TABASNN000 is a 1.03-inch reflective Memory-in-Pixel (MIP) LCD module featuring a native resolution of 128 × 128 pixels and an SPI communication interface. The display utilizes ambient light as its primary illumination source, providing excellent readability in high-brightness environments, including direct sunlight and outdoor operating conditions.
To ensure visibility under low ambient light conditions, the module incorporates an integrated LED front-light system. Due to the reflective architecture of the display, the front light serves as a supplemental illumination source and is not intended to function as the primary light source.
The display module is optimized for ultra-low power operation, making it well suited for battery-powered and energy-constrained applications. Its compact mechanical dimensions of 24.29 × 28.66 × 1.78 mm facilitate integration into space-limited designs. Additional features include a hard-coated front polarizer for enhanced surface durability and an operating temperature range of -20°C to +70°C, enabling reliable performance across a wide range of industrial and portable electronic applications.
To ensure visibility under low ambient light conditions, the module incorporates an integrated LED front-light system. Due to the reflective architecture of the display, the front light serves as a supplemental illumination source and is not intended to function as the primary light source.
The display module is optimized for ultra-low power operation, making it well suited for battery-powered and energy-constrained applications. Its compact mechanical dimensions of 24.29 × 28.66 × 1.78 mm facilitate integration into space-limited designs. Additional features include a hard-coated front polarizer for enhanced surface durability and an operating temperature range of -20°C to +70°C, enabling reliable performance across a wide range of industrial and portable electronic applications.
Technology Overview
- MIP (Reflective): Uses ambient light as the primary light source, enabling ultra-low power consumption and stable image retention.
- TFT LCD: Uses a backlight as the primary light source, suitable for applications requiring consistent brightness.
- OLED: Uses self-emissive pixels to provide high contrast and fast response.
