SynZen Introduces Versatile TABIT Antenna for Enhanced GNSS Applications
Files

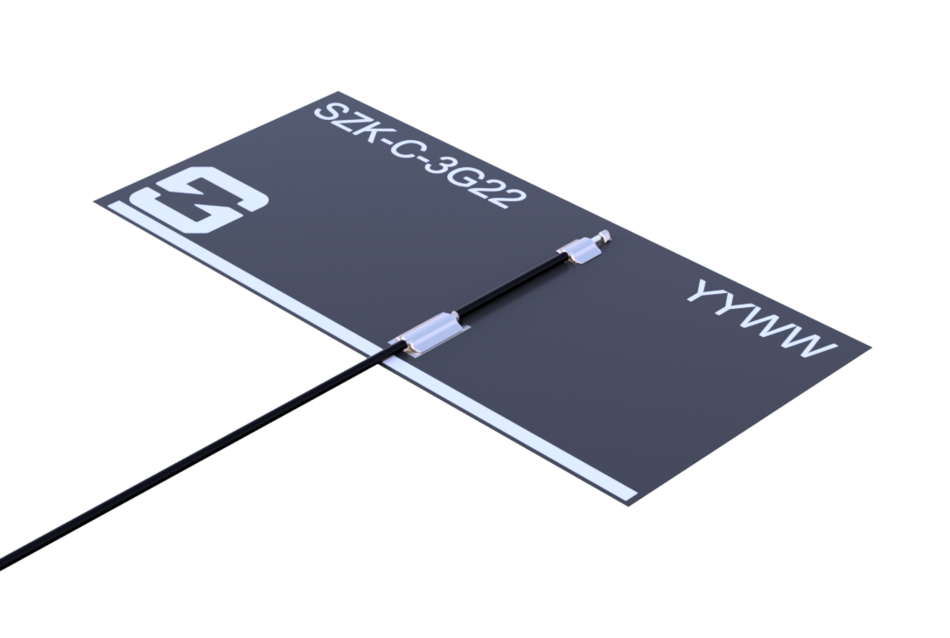

SynZen, a renowned innovator in antenna technology, is pleased to announce the release of the TABIT antenna. This new addition is a flexible PCB antenna designed for high-precision GNSS applications, supporting multiple global navigation systems such as GPS, Galileo, QZSS, GLONASS, BeiDou, IRNSS, and SBAS.
The TABIT antenna, with its compact dimensions of 59 x 28 x 0.2 mm and adhesive backing, offers ease of integration into various devices. Operating within 1164-1300 MHz and 1559-1610 MHz frequency ranges, it ensures robust and accurate positioning, making it suitable for a wide range of applications, including automotive, logistics and IoT.
SynZen’s TABIT antenna is a testament to their ongoing commitment to quality and innovation in the field of antenna technology. Its user-friendly design and reliable performance make it a valuable component for next-generation GNSS-enabled devices.
For more details about the TABIT antenna please check the documentation. Samples can be requested via sales@spezial.com.
TABIT Antenna Features
| Feature | Specification |
|---|---|
| Frequency Range | 1164-1300 MHz, 1559-1610 MHz |
| Supported GNSS | GPS, Galileo, QZSS, GLONASS, BeiDou, IRNSS, SBAS |
| Dimensions | 59 x 28 x 0.2 mm |
| Design | Flexible PCB |
| Mounting | Adhesive-backed |
| Operating Temperature | -40°C to +85°C |
| Polarization | RHCP (Right-Hand Circular Polarized) |
| Impedance | 50 ohms |
Typical Applications include:
- Telematics
- Fleet Management
- Positioning
For more details about the TABIT antenna please check the documentation. Samples can be requested via sales@spezial.com.
