HOSONIC: Cost effective SMD Crystals (E1SB,E2SB, E3SB) for EtherCAT Application and Solutions
HOSONIC's cost effective E1SB,E2SB,E3SB Series offer high frequency stability and low jitter, essential for high-speed communication and synchronization in EtherCAT networks.
Compact Form Factor:

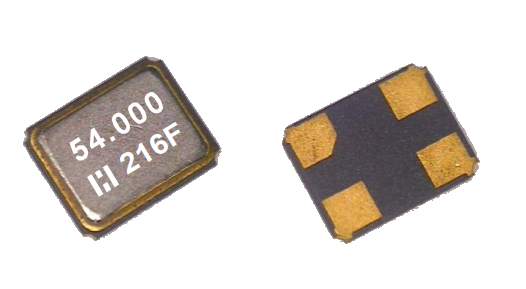

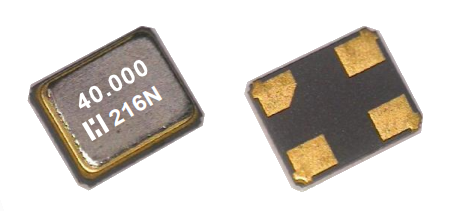

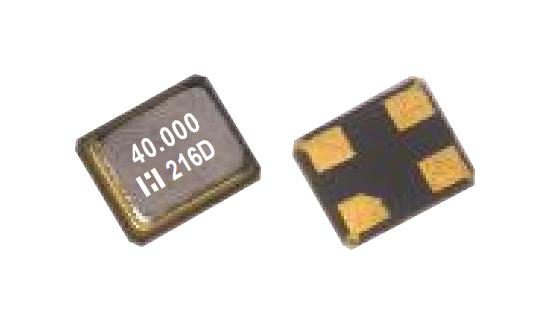

The compact packaging of the E3SB (3.2 mm x 2.5 mm x 0.75mm), E2SB (2.5 mm x 2.0 mm x 0.55 mm) and E1SB (2.0 mm x 1.6 mm x 0.5 mm) allows for easy integration into space-constrained designs.
Usage in EtherCAT Applications
Compact Form Factor:
The compact packaging of the E3SB (3.2 mm x 2.5 mm x 0.75mm), E2SB (2.5 mm x 2.0 mm x 0.55 mm) and E1SB (2.0 mm x 1.6 mm x 0.5 mm) allows for easy integration into space-constrained designs.
Usage in EtherCAT Applications
- The E3SB, E2SB, and E1SB series are integral to the performance of EtherCAT (Ethernet for Control Automation Technology) networks, providing:
- Real-Time Data Exchange: High-frequency stability and low phase jitter ensure precise timing and synchronization across devices.
- High-Speed Communication: The low jitter characteristics support high-speed data transfer, crucial for real-time control applications.
- Scalability and Flexibility: These oscillators support scalable network architectures, accommodating future growth and technological advancements in industrial automation.
With the Standard 25MHz needed to clock the Networking/Slave IC HOSONIC offer's a full lineup for all needs of customers using EtherCAT Technology.
Overview of Key Specification:
Overview of Key Specification:
|
Package Size (Series) |
Load Capacitance |
Frequencytolerance (25°C/OTR) |
Operating Temperature |
|
SMD 3.2x2.5 (E3SB) SMD 2.5x2.0 (E2SB) SMD 2.0x1.6 (E1SB) |
6-20pF |
±10/±15 ppm ±30/±30 ppm |
-40+85°C -40+105°C |
