Honeywell Expands its Current Sensing Portfolio for Electric Vehicles with CSNV500, CSNV1500, and CSSV1500.
Honeywell’s Current Sensors are non-intrusive and electrically isolated from the monitored circuit. This ensures a simple and reliable structure without loss of power to the monitored circuit. Honeywell leverages over 40 years of experience designing sensors and switches for transportation vehicles to deliver on performance and reliability. These sensors are calibrated and temperature compensated for improved accuracy using a Honeywell patented multi-point temperature characterization. These current sensors are designed to communicate using CAN communication protocol, allowing ease of integration for design engineers.
In electric vehicles, accurate current sensors are required for safety and performance. For more detailed technical information, please contact us.
About CSNV500 Current Sensor

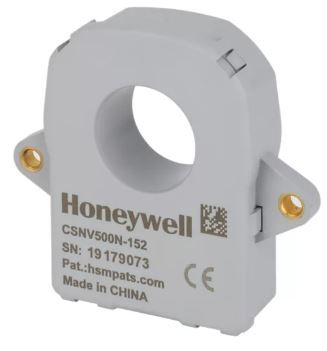

The CSNV500 Series are closed loop Hall-effect current sensors rated for a primary current measurement range of ±500 A DC. This sensor family uses a multi-point temperature characterization and calibration to deliver an accuracy of 0.5% over the operating temperature range. It has an optimized magnetic circuit that allows excellent performance in diverse magnetic environments, providing engineers more flexibility in their design. It is designed and qualified to automotive quality and reliability requirements for on-vehicle use. The CSNV500 Series can be customized per customer request to meet application needs.About CSNV1500 Current Sensor

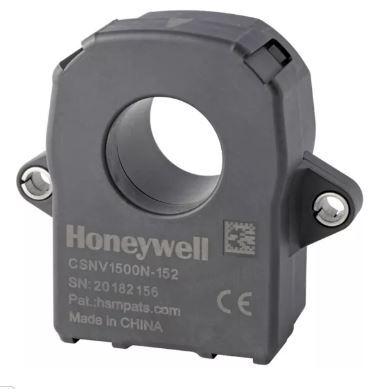

The CSNV1500 Series are advanced closed loop Hall-effect current sensors rated for a primary current measurement range of ±1500 A DC. This sensor family uses a multi-point temperature characterization and calibration to deliver an accuracy of 1% over the operating temperature range. The CSNV1500 Series is a cost-effective option tailored for high-amperage needs in non-safety critical applications where a sensing range of up to ±1500 A dc is required. It is designed and qualified to automotive quality and reliability requirements for on-vehicle use. The CSNV1500 Series can be customized per customer request to meet application needs.About CSSV1500 Current Sensor

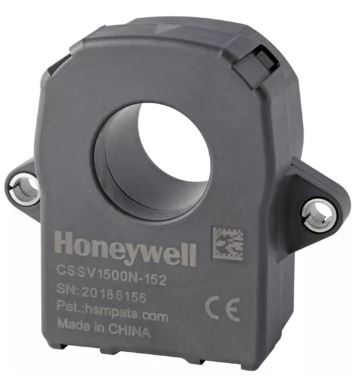

The CSSV Series are advanced fluxgate current sensors that use a multi-sensing scheme to comply with ASIL-C requirements while delivering on reliability and performance. The CSSV Series has two independent sensing and data processing circuits for current sensing. The two processed data are checked for confidence. If they are within the set threshold range, the current data is outputted. If the threshold is exceeded, an alarm message is sent. The CSSV Series is designed for safety critical applications and rated for a primary current measurement range of ±1500 A DC. This sensor family uses Honeywell’s patented multi-point temperature characterization and calibration to deliver an accuracy of 0.5% over the operating temperature range. The CSSV1500 Series can be customized per customer request to meet application needs
| Product Name | Part Number | ||
|---|---|---|---|
|
CSNV500 Series Hall-based closed loop current sensors, 500 A, through-hole, 250 k baud rate, 3C4 CAN ID |
CSNV500M-124 |
||
|
CSNV500 Series Hall-based closed loop current sensors, 500 A, through-hole, 250 k baud rate, 3C5 CAN ID |
CSNV500M-125 |
||
|
CSNV500 Series Hall-based closed loop current sensors, 500 A, through-hole, 250 k baud rate, 3C6 CAN ID |
CSNV500M-126 |
||
|
CSNV500 Series Hall-based closed loop current sensors, 500 A, through-hole, 250 k baud rate, 3C4 CAN ID |
CSNV500M-324 |
||
|
CSNV500 Series Hall-based closed loop current sensors, 500 A, through-hole, 250 k baud rate, 3C5 CAN ID |
CSNV500M-325 |
||
|
CSNV500 Series Hall-based closed loop current sensors, 500 A, through-hole, 250 k baud rate, 3C6 CAN ID |
CSNV500M-326 |
||
|
CSNV500 Series Hall-based closed loop current sensors, 500 A, through-hole, 500 k baud rate, 3C4 CAN ID |
CSNV500M-154 |
||
|
CSNV500 Series Hall-based closed loop current sensors, 500 A, through-hole, 500 k baud rate, 3C5 CAN ID |
CSNV500M-155 |
||
|
CSNV500 Series Hall-based closed loop current sensors, 500 A, through-hole, 500 k baud rate, 3C6 CAN ID |
CSNV500M-156 |
||
|
CSNV500 Series Hall-based closed loop current sensors, 500 A, through-hole with metal bushing, 500 k baud rate, 3C4 CAN ID |
CSNV500N-154 |
||
|
CSNV500 Series Hall-based closed loop current sensors, 500 A, through-hole with metal bushing, 500 k baud |
CSNV500N-155 |
||
|
CSNV500 Series Hall-based closed loop current sensors, 500 A, through-hole with metal bushing, 500 k baud |
CSNV500N-156 |
||
|
CSNV500 Series Hall-based closed loop current sensors, 500 A, through-hole, 500 k baud rate, 3C4 CAN ID with CAN termination 120Ω |
CSNV500M-354M |
||
|
CSNV500 Series Hall-based closed loop current sensors, 500 A, through-hole, 500 k baud rate, 3C5 CAN ID with CAN termination 120Ω |
CSNV500M- 355M |
||
|
CSNV500 Series Hall-based closed loop current sensors, 500 A, through-hole, 500 k baud rate, 3C6 CAN ID with CAN termination 120Ω |
CSNV500M-356M |
||
|
CSNV500 Series Hall-based closed loop current sensors, 500 A, through-hole with metal bushing, 500 k baud rate, 3C4 CAN ID with CAN termination 120Ω |
CSNV500N- 354M |
||
|
CSNV500 Series Hall-based closed loop current sensors, 500 A, through-hole with metal bushing, 500 k baud rate, 3C5 CAN ID with CAN termination 120Ω |
CSNV500N-355M |
||
|
CSNV500 Series Hall-based closed loop current sensors, 500 A, through-hole with metal bushing, 500 k baud rate, 3C6 CAN ID with CAN termination 120Ω |
CSNV500N- 356M |
||
|
CSNV1500 Series Hall-effect current sensor, 1500 A, through-hole mounting with stainless steel bushing, MCU1, 250k baud rate, 3C4 CAN ID |
CSNV1500N-124 |
||
|
CSNV1500 Series Hall-effect current sensor, 1500 A, through-hole mounting with stainless steel bushing, MCU1, 250k baud rate, 3C5 CAN ID |
CSNV1500N- 125 |
||
|
CSNV1500 Series Hall-effect current sensor, 1500 A, through-hole mounting with stainless steel bushing, MCU1, 250k baud rate, 3C6 CAN ID |
CSNV1500N-126 |
||
|
CSNV1500 Series Hall-effect current sensor, 1500 A, through-hole mounting with stainless steel bushing, MCU2, 250k baud rate, 3C4 CAN ID |
CSNV1500N- 324 |
||
|
CSNV1500 Series Hall-effect current sensor, 1500 A, through-hole mounting with stainless steel bushing, MCU2, 250k baud rate, 3C5 CAN ID |
CSNV1500N-325 |
||
|
CSNV1500 Series Hall-effect current sensor, 1500 A, through-hole mounting with stainless steel bushing, MCU2, 250k baud rate, 3C6 CAN ID |
CSNV1500N- 326 |
||
|
CSNV1500 Series Hall-effect current sensor, 1500 A, through-hole mounting with stainless steel bushing, MCU1, 500k baud rate, 3C4 CAN ID |
CSNV1500N-154 |
||
|
CSNV1500 Series Hall-effect current sensor, 1500 A, through-hole mounting with stainless steel bushing, MCU1, 500k baud rate, 3C5 CAN ID |
CSNV1500N-155 |
||
|
CSNV1500 Series Hall-effect current sensor, 1500 A, through-hole mounting with stainless steel bushing, MCU1, 500k baud rate, 3C6 CAN ID |
CSNV1500N- 156 |
||
|
CSNV1500 Series Hall-effect current sensor, 1500 A, through-hole mounting with stainless steel bushing, MCU2, 500k baud rate, 3C4 CAN ID |
CSNV1500N-354 |
||
|
CSNV1500 Series Hall-effect current sensor, 1500 A, through-hole mounting with stainless steel bushing, MCU2, 500k baud rate, 3C5 CAN ID |
CSNV1500N-355 |
||
|
CSNV1500 Series Hall-effect current sensor, 1500 A, through-hole mounting with stainless steel bushing, MCU2, 500k baud rate, 3C6 CAN ID |
CSNV1500N-356 |
||
|
CSSV1500N Series closed loop current sensors, 1500 A, through-hole mounting with stainless, ASIL-C Compliant, 500 k baud rate, 3C4 CAN ID |
CSSV1500N-154 |
||
|
CSSV1500N Series closed loop current sensors, 1500 A, through-hole mounting with stainless, ASIL-C Compliant, 500 k baud rate, 3C5 CAN ID |
CSSV1500N-155 |
||
|
CSSV1500N Series closed loop current sensors, 1500 A, through-hole mounting with stainless, ASIL-C Compliant, 500 k baud rate, 3C6 CAN ID |
CSSV1500N-156 |
||
|
CSSV1500N Series closed loop current sensors, 1500 A, through-hole mounting with stainless, ASIL-C Compliant, 500 k baud rate, 3C4 CAN ID, reverse current direction |
CSSV1500N-154R |
||
|
CSSV1500N Series closed loop current sensors, 1500 A, through-hole mounting with stainless, ASIL-C Compliant, 500 k baud rate, 3C5 CAN ID, reverse current direction |
CSSV1500N- 155R |
||
|
CSSV1500N Series closed loop current sensors, 1500 A, through-hole mounting with stainless, ASIL-C Compliant, 500 k baud rate, 3C6 CAN ID, reverse current direction |
CSSV1500N-156R |
||
