Amphenol: Sealed / Insulated NPI Series Pressure Sensors
Files

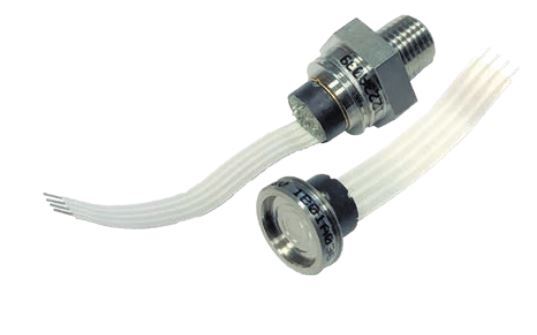

The NovaSensor NPI series features a very robust SenStable® piezoresistive MEMS chip in an insulated stainless steel housing. The modular design is ideal for use in harsh environments and allows for a variety of different pressure sensors that are hermetically welded to the sensor head. The sensors are specifically designed for industrial or medical applications. They generate a voltage signal that is linearly proportional to the input .
Features
Applications
- Pressure range: 2.5 psi (17 kPa) to 5,000 psi (35,000 kPa)
- Very robust and high reliability
- Gauge, absolute and sealed gauge variants
- 316L stainless steel body for compatibility with corrosive media
- HEX diameter: 15 mm / 19 mm- current or voltage controlled
- Operating temperature range: -40°F to 257°F (-40°C to 125°C)
- TEB: ±1% FSO*
- Outputs: Analogue (mV) or digital (I2C, coming soon)
- Available in port and non-port versions
- Custom configurations and pressure ranges available
Applications
- Industrial process control
- Measurement of corrosive liquids and gases
- Hydraulic systems and valves
- Tank level measurement
- Barometric pressure measurement
- Marine and naval systems
- Aircraft and avionics systems
- Medical devices
