MA114.B.LB.001

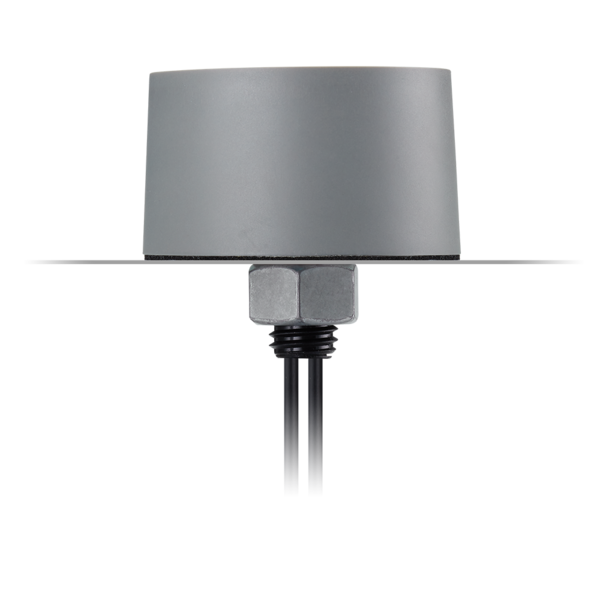

2-in-1 Small Form Factor GNSS and 5G Permanent Mount Antenna

The Taoglas MA114, is a small form factor 2-in-1 permanent mount combination antenna for use cases requiring worldwide 4G LTE coverage, from 600-3000MHz and GPS/GLONASS/BeiDou/Galileo for positioning.
The MA114 has been designed to be mounted directly onto metal with no performance degradation. The MA114 covers fallback to 3G/2G bands where 4G coverage is not available and can also be used to cover Cat M1/LTE-M & NB-IoT bands.

Typical Applications include:

• Remote Monitoring
• Smart Metering
• Transportation

The IP67 waterproof PC / ABS enclosure measures just 35mm high and 57mm in diameter making it a superb choice for areas where space and heights constraints are present.
The 4G LTE coaxial cable is low loss TGC-1.5DS with SMA(M) connectors and the GPS/GLONASS/BeiDou/Galileo cable is RG-174 and includes an SMA(M) connector.

The MA114 has been designed to be mounted on an enclosed metal box with no performance degradation and is perfect for metering and monitoring applications. The low profile robust enclosure makes it the ideal design and any industrial sector applications.

Customized cables and connector versions are also available.
