LEA-M8S-0

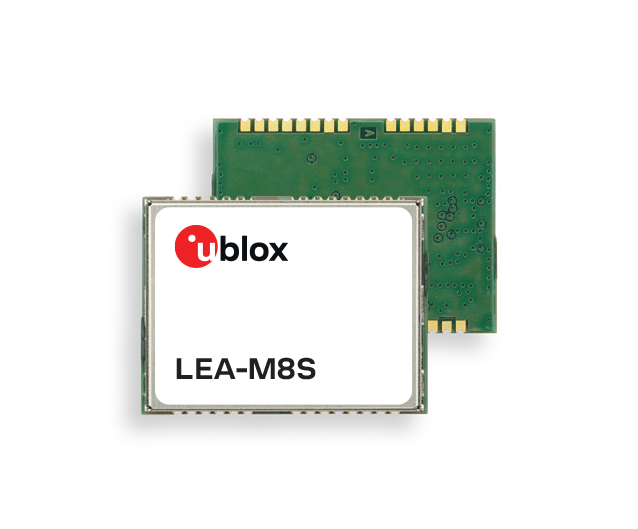

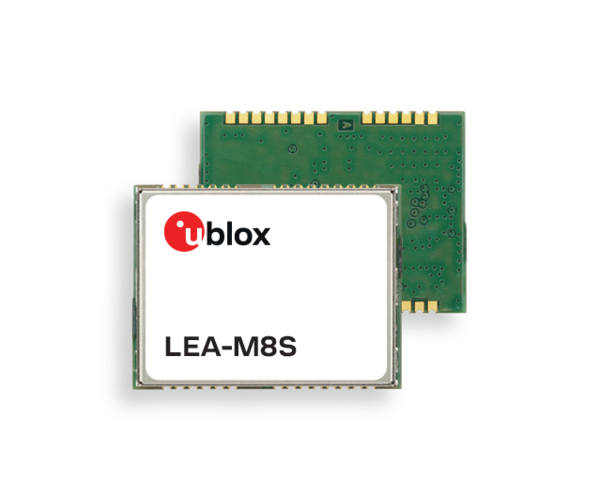

u-blox M8 GNSS Module*TCXO*ROM*17x22mm GPS/QZSS, GLONASS, BeiDou * 250 pcs/reel
Manufacturer Item No.:
LEA-M8S-0
Item number:
LEA-M8S-0
from 1 pieces
31,37 € / 1 pieces
from 10 pieces
26,89 € / 1 pieces
from 50 pieces
24,13 € / 1 pieces
from 100 pieces
19,20 € / 1 pieces
Add to Favorites
Seamless upgrade of existing LEA-6 designs to multi-GNSS
- Concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)
- Industry leading 167 dBm navigation sensitivity
- Combines low power consumption and high sensitivity
- Superior anti-spoofing and anti-jamming
- UART, USB and DDC (I²C compliant) interfaces
- Easy migration from LEA-6 modules
| Form factor: | LEA |
|---|---|
| Chip: | u-blox M8 |
| GNSS supported: | GPS / QZSS, Galileo, BeiDou, GLONASS |
| GNSS Bands: | L1 |
| GNSS Oscillator: | TCXO |
| Memory: | Flash |
| Antenna Option: | Antenna pin |
| Temperature: | -40 to +85 °C |
| Dimensions: | 22.4 x 17 x 2.4 mm |
| Voltage: | 2.7 - 3.6 VDC |
| UART: | 1 |
| USB: | 1 |
| I2C: | 1 |
| S/W Features: | Additional SAW, Built-in sensor, RTC crystal, Timepulse output |
