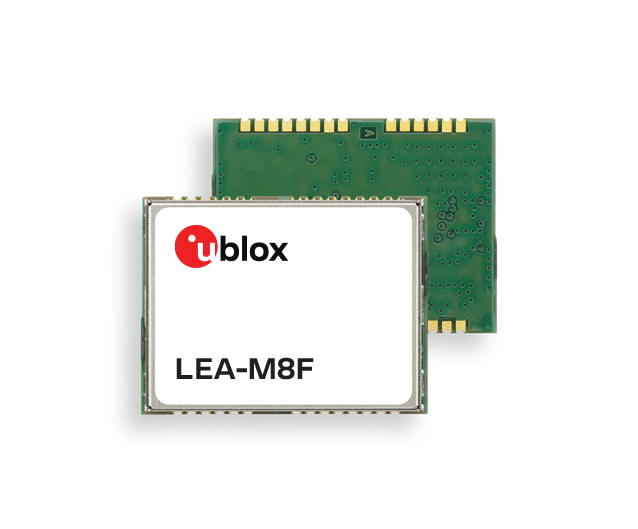

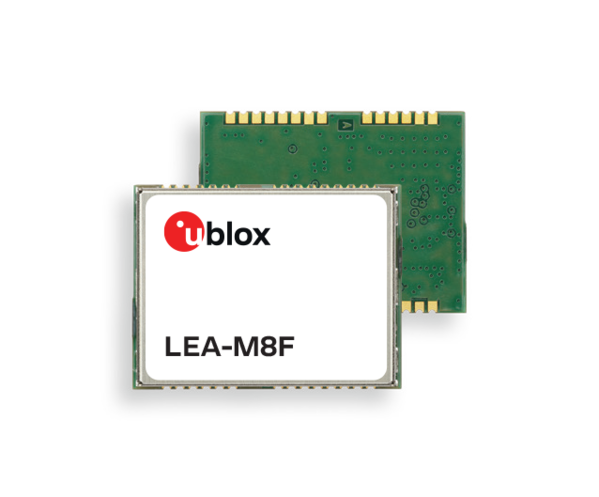

LEA-M8F-0
u-blox M8 disciplined-frequency module*GPS (raw), GLONASS, BeiDou*17 x 22mm*250 pcs/reel*
Manufacturer Item No.:
LEA-M8F-0
Item number:
LEA-M8F-0
from 100 pieces
60,40 € / 1 pieces
Add to Favorites
Multi-GNSS synchronization for cost-sensitive network edge equipment
- Concurrent reception of GPS/QZSS, GLONASS, BeiDou
- Integral disciplined low phase-noise 30.72 MHz system reference oscillator
- Accurate measurement and control of external oscillators
- Industry leading acquisition sensitivity and single-satellite timing
- Autonomous 100 ppb hold-over
- Prepared for integration with external PTP, Sync-E and network listen
| Form factor: | LEA |
|---|---|
| Chip: | u-blox M8 |
| GNSS supported: | BeiDou, GLONASS, GPS / QZSS |
| GNSS Bands: | L1 |
| GNSS Oscillator: | VCTCXO |
| Memory: | Flash |
| Antenna Option: | Antenna pin |
| Temperature: | -40 to +85 °C |
| Dimensions: | 22.4 x 17 x 3.5 mm |
| Voltage: | 3 - 3.6 VDC |
| UART: | 1 |
| USB: | 1 |
| I2C: | 1 |
| SPI: | 1 |
| S/W Features: | Additional LNA, Additional SAW, Built-in sensor, RTC crystal |
