FX604D4

Product Description

The FX604 is a low power CMOS integrated circuit for the reception or transmission of asynchronous 1200bits/sec data in accordance with CCITT V.23 and ETSI specifications. It is also capable of generating the 75bits/sec 'back channel'.

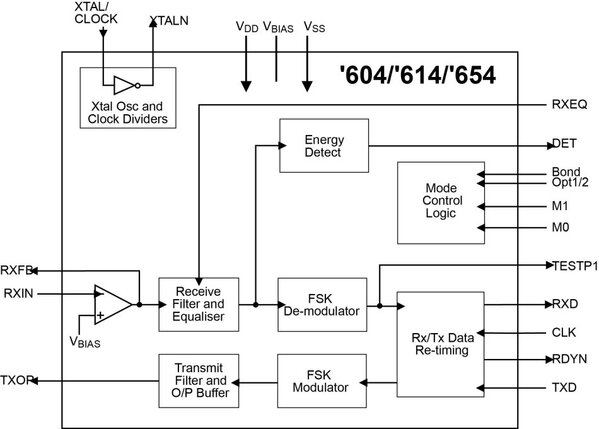

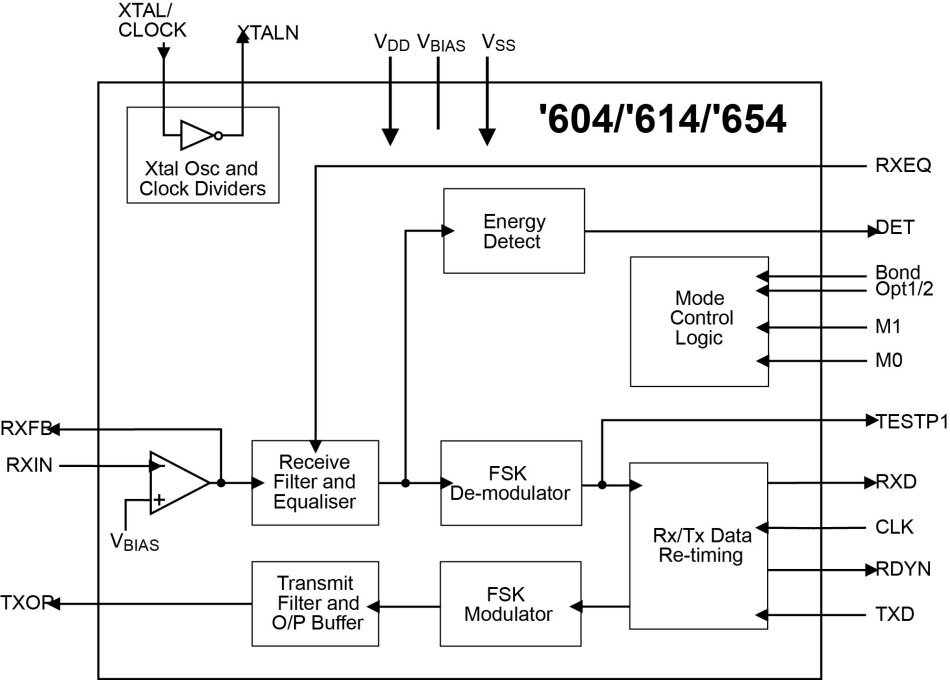

The device incorporates an optional Tx and Rx data retiming function that removes the need for a UART in the associated µC when operating at 1200bits/sec. The device can disable the back channel or be operated so only the mark or space tone is produced. An optional line equaliser is incorporated into the receive path, this is controlled by an external logic level.

The FX604 may be used in a wide range of telephone telemetry systems. With a low voltage requirement of 3.0V it is suitable for both portable terminal and line powered applications. A very low current 'sleep' mode (1µA typ.) and operating current of 1mA typ. mean the device is ideal for line powered applications. A 3.58MHz standard Xtal/Clock rate is required and the device operates from a 3.0 to 5.5V supply.

Features

• 1200/75 bits/sec Full Duplex V23 compatible Modem
• Optional 75bits/sec Back Channel
• Optional 1200bits/sec Data Retiming Facility
• Optional 1200bits/sec Data Retiming Facility
• 3.58MHz Xtal/Clock Rate
• 3.0 to 5.5V Supply; 1.0mA typ. at 3V
• 'Zero-Power' Mode; 1mA typ.
• Optional Line Equalisation
• -40°C to +85°C Operating Temperature
• Conforms to relevant sections of V23 and ETSI specifications
