FN2211HV-600-99-C27-R99

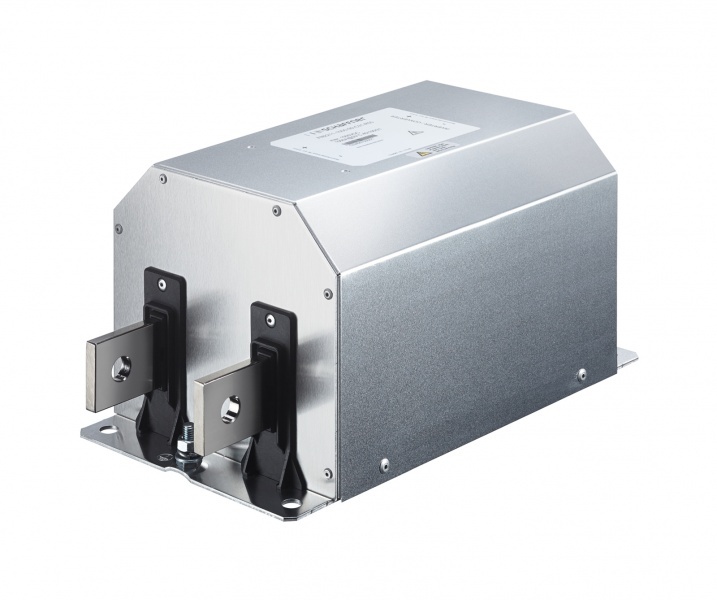

Schaffner*FN 2211HV-600-99-C27-R99 DC Busbar Filter 1500VDC, 600A, 2.2uF, 10MOhm
Manufacturer Item No.:
813440-SF
Item number:
FN 2211HV-600-99-C27
from 1 pieces
591,18 € / 1 pieces
from 5 pieces
573,45 € / 1 pieces
from 10 pieces
555,71 € / 1 pieces
from 20 pieces
537,98 € / 1 pieces
Add to Favorites
| Series: | FN2211 |
|---|---|
| Application Type: | PV Inverter, battery storage and DC Charger |
| Voltage: | 1500 VDC |
| Current: | 600 A |
| Number of phases: | 1 |
| with Neutral: | no |
| Medical (B) Type: | no |
| Low Leakage Current: | no |
| Performance Level: | high |
| Overvoltage Protection: | no |
| Assembly Option: | Mounting Type |
| Type (E) with Earthline Choke: | no |
| Type (S) Snap In: | no |
| Dimensions: | 315 x 175 x 150 mm |
| Net weight: | 4800 g |
| Gross weight: | 5280 g |
