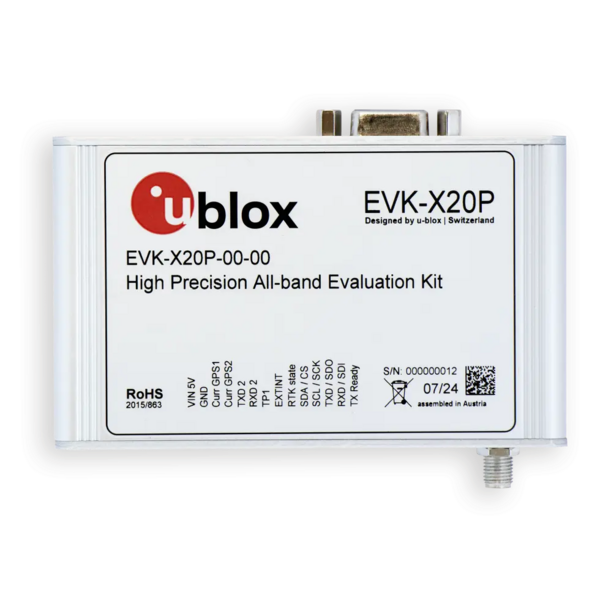

EVK-X20P-00

u-blox X20P high precision GNSS evaluation kit



EVK for Multi-band GNSS receiver delivers centimeter level accuracy in seconds

• USB (Type-C connector) available for power supply and data transfer
• Coin battery (not included) for backup power supply
• 14-pin front connector to access all interface



30 days free trial for PointPerfect Corrections: https://tinyurl.com/PointPerfect

The EVK-X20P evaluation kit allows efficient evaluation of ZED-X20P, the u-blox all-band high precision positioning module. The ZED-X20P module provides all-band GNSS positioning and comes with built-in RTK technology providing centimeter-level accuracy to users. Augmentation services may be formatted as SPARTN 2.0 or RTCM 3.4.

The evaluation kit relies on the networking capability of the computer running u-center 2 to deliver correction services to the ZED-X20P. u-center 2 is a powerful platform for the evaluation of u-blox GNSS receivers, with which data can be logged as well as visualized in real time. The u-center 2 desktop application contains an NTRIP server/client so that EVK-X20P may serve as a RTCM base or rover. Two evaluation kits are needed to perform the base and rover functions. Alternatively, a client can stream PPP-RTK corrections using the PointPerfect service.
