JODY-W3 series modules provide complete short-range transceiver solutions based on the NXP chipset 88Q9098.
Intended for the most advanced in-car infotainment and connectivity systems, JODY-W3 series modules deliver the highest data rates in Wi-Fi using advanced Wi-Fi 6 802.11ax technology. The modules operate in concurrent dual-bands, Wi-Fi 2.4 and 5 GHz, dual-MAC, and 2x2 MIMO, and support Bluetooth 5.1 features like extended advertising, long range, and 2 Mbit/s (PHY) data rates.
The modules require a host processor running Linux or Android and connect to the host processor through either PCIe or SDIO for Wi-Fi, SDIO or high-speed UART for Bluetooth, and PCM/I2S for Bluetooth audio.
EVK-JODY-W3 allows an external host processor to access several practical features for testing and evaluating the Wi-Fi and Bluetooth connectivity supported in JODY-W3 series modules, including:
Intended for the most advanced in-car infotainment and connectivity systems, JODY-W3 series modules deliver the highest data rates in Wi-Fi using advanced Wi-Fi 6 802.11ax technology. The modules operate in concurrent dual-bands, Wi-Fi 2.4 and 5 GHz, dual-MAC, and 2x2 MIMO, and support Bluetooth 5.1 features like extended advertising, long range, and 2 Mbit/s (PHY) data rates.
The modules require a host processor running Linux or Android and connect to the host processor through either PCIe or SDIO for Wi-Fi, SDIO or high-speed UART for Bluetooth, and PCM/I2S for Bluetooth audio.
EVK-JODY-W3 allows an external host processor to access several practical features for testing and evaluating the Wi-Fi and Bluetooth connectivity supported in JODY-W3 series modules, including:
- External connectors to all host interfaces (PCIe, SDIO and UART)
- USB interface for easy access the Bluetooth UART interface through a USB-to-UART bridge
- Digital and analog audio interfaces for Bluetooth
- Two internal dual-band 2.4/5 GHz antennas for Wi-Fi and Bluetooth.
- Three SMA connectors for external antennas.
- • GPIO pins and other module interfaces are accessible through pin headers
- • Multiple power supply options

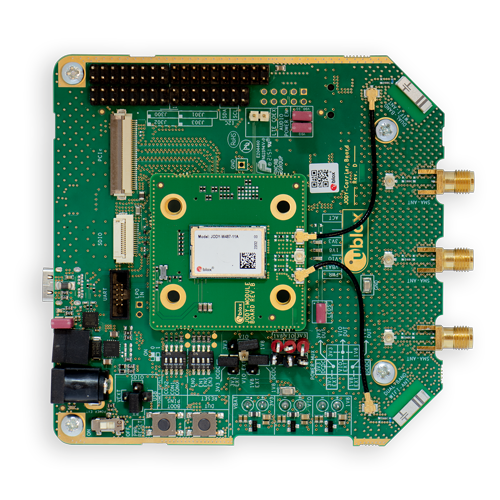

- JODY-W3 evaluation board
- M.2 PCIe to ZIF adapter for Wi-Fi host communication
- Mini-PCIe to ZIF adapter for Wi-Fi host communication
- One flat ZIF cable is included for both PCIe adapters
- Micro SDIO to ZIF adapter and flat ZIF cable for Wi-Fi and/or Bluetooth host communication
- 2 (EVK-JODY-W374) or 3 (EVK-JODY-W377) external dual band Wi-Fi/Bluetooth antennas with SMA connector
- Type C USB cable
Form factor: | Evaluation Kit |
---|
