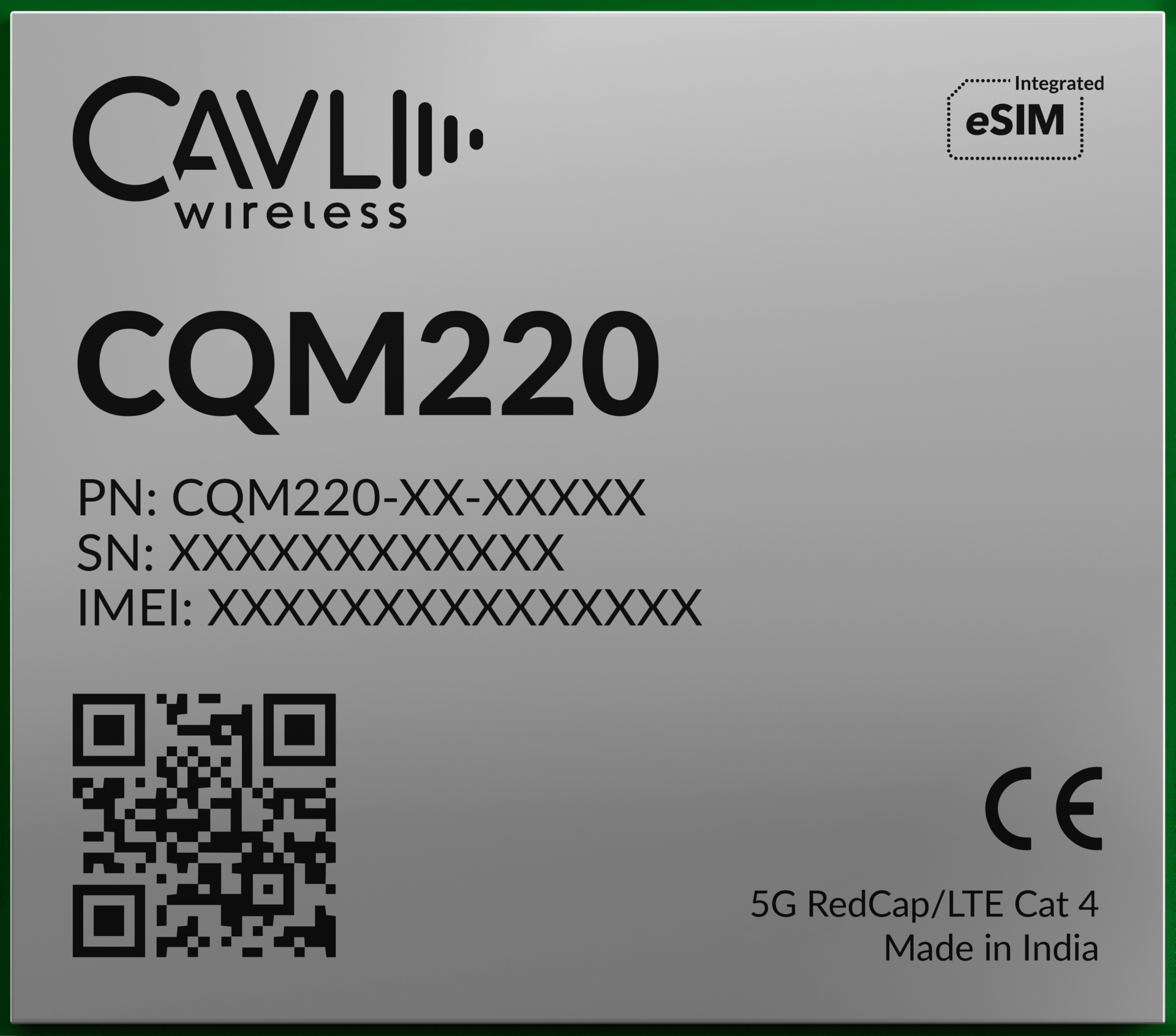

CQM220-WW-11S00N

CAVLI*CQM220*5G RedCap*4G LTE fallback*worldwide
LGA*25x28x2.4mm*128MB RAM+128MB Flash*no GNSS
Manufacturer Item No.:
CQM220-WW-11S00N
Item number:
CQM220-WW-11S00N
Currently not available
Add to Favorites
CQM220 is a 5G RedCap module compatible with 3GPP release 17 standards for IoT and M2M applications. It delivers maximum data bandwidth up to 220Mbps in downlink and 50Mbps uplink. The module is available in LGA and M.2 form factors.

CQM220 also supports optional in-built GNSS making it ideal for tracking applications. The module comes with OpenWrt based OpenSDK, ensuring application level coding for specific without requiring an external host MCU. CQM220 is perfect for applications that require higher data throughput with location information and global deployments such as Asset Tracking, Vehicular Telemetry System, Industry 4.0 etc.


Features

  • Compact Footprint
  • 5G RedCap (3GPP Rel. 17) with up to 220/50 Mbit/s
  • 4G LTE Cat.4 Fallback with up to 150/50 Mbit/s
  • openWRT SDK available
  • optional integrated GNSS
  • optional integrated eSIM
Cellular Regions:Multi-Region
Datarate:5G Redcap (220/50 Mbit/s DL/UL), 4G LTE Cat.4 (150/50 Mbit/s DL/UL)
5G Bands:n1, n2, n3, n5, n7, n8, n12, n13/n14, n18, n19, n20, n25, n26, n28, n30, n38, n40, n41, n48, n66, n70, n71, n77, n78
LTE Bands:1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 18, 20, 25, 26, 28A, 28B, 30, 38, 40, 41, 66, 70, 71
GNSS supported:no
Flash:128 MB
RAM:128 MB
UART:2
USB:1
I2C:1
I2S:1
PCIe Interface:1
Voltage:tbd
Temperature:tbd
Dimensions:28.0 × 25.0 × 2.4 mm
