CQ20-WW-11GNN
CAVLI*CQ20*LTE Cat.4/2G module*128MB RAM+NAND
LGA*32x29mm*-30/+85°C
LGA*32x29mm*-30/+85°C
Manufacturer Item No.:
CQ20-WW-11GNN
Item number:
CQ20-WW-11GNN
Add to Favorites

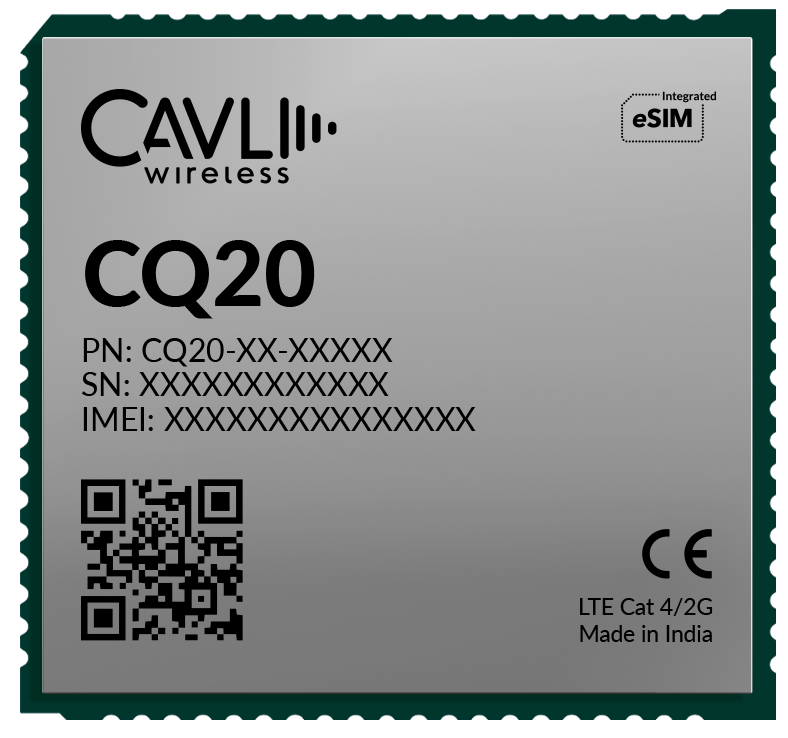

CQ20 is an LTE Cat 4 module with 2G fall back compliant with 3GPP release 10 standards, with emphasis on data speed/bandwidth. Engineered in LCC+LGA form factor, it delivers a maximum data rate of 150 Mbit/s DL & 50 Mbit/s UL. CQ20 supports in-built GNSS powered by Qualcomm® IZatTM location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS), ensuring precise positioning. Additionally, it supports VoLTE and SMS over IMS/SG/CS and a wide variety of Internet protocols and industry-standard hardware interfaces.
The module comes in a world wide variant: CQ20-WW for worldwide deployments with other regional variants under development. Featuring an optional integrated eSIM powered by Cavli Hubble platform, the module provides seamless global connectivity and wide coverage which helps to reduce the time to market. CQ20 is tailored for IoT and M2M applications, such as asset tracking, automotive, e-mobility, data loggers, fleet management, environmental monitoring and much more..
The module comes in a world wide variant: CQ20-WW for worldwide deployments with other regional variants under development. Featuring an optional integrated eSIM powered by Cavli Hubble platform, the module provides seamless global connectivity and wide coverage which helps to reduce the time to market. CQ20 is tailored for IoT and M2M applications, such as asset tracking, automotive, e-mobility, data loggers, fleet management, environmental monitoring and much more..
Features
- Multi-region Band support
- VoLTE Support
- integrated GNSS (Qualcomm)
- 2G Fallback
- optional eSIM
| Cellular Regions: | Multi-Region |
|---|---|
| Datarate: | Cat 4 (150 Mbit/s DL, 50 Mbit/s UL) |
| LTE Bands: | 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 25, 26, 40, 66 |
| GSM Bands: | Dual-band |
| GNSS supported: | GPS / QZSS, Galileo, BeiDou, GLONASS |
| GNSS Bands: | L1 |
| Flash: | 128 MB |
| RAM: | 128 MB |
| UART: | 3 |
| USB: | 1 |
| SDIO: | 1 |
| I2C: | 1 |
| SPI: | 1 |
| Voltage: | 3.6 - 4.5 VDC |
| Temperature: | -30 to +85°C |
| Dimensions: | 32 x 29 mm |
