MICROCRYSTAL*Quartz*20ppm*-40+85°C*12.5pF*T&R*RoHS CM9V-T1A*32.768 KHz*1.6x1.0x0.5 mm* TAQC
Manufacturer Item No.:
Item number:
In Stock.
Usually ships in 1 to 3 days
Add to Favorites

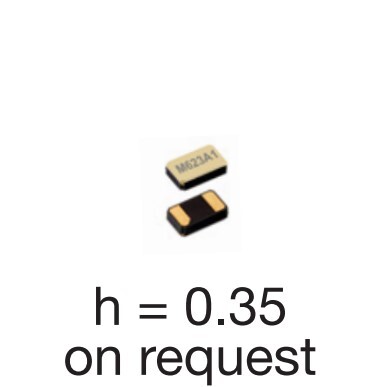

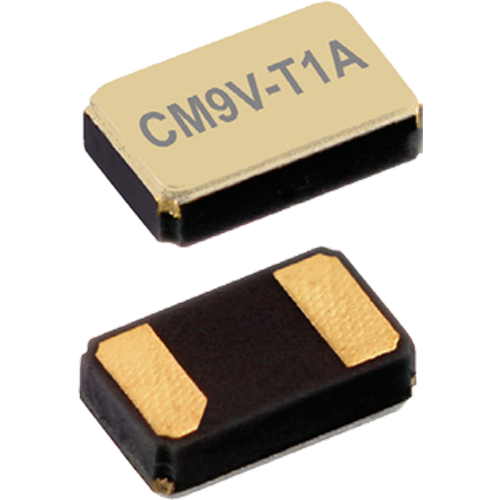

CM9V-T1A is a low frequency SMT Quartz Crystal Unit that incorporates a tuning fork Quartz Crystal Resonator. It operates under vacuum in a hermetically sealed ceramic package with metal lid.
  • Ultra small size: 1.6 × 1.0 × 0.50 mm
  • Outstanding hermetic sealing with gold-tin preform
  • High stability and low aging guaranteed by hermetic sealing
  • Available for extended operating temperature range
  • Lightweight: 2.4 mg
  • High shock and vibration resistant
  • 100% Pb-free, RoHS-compliant
  • Automotive qualification according to AEC-Q200 available
Form factor:1610
Frequency :32.768 kHz
Temperature:-40 to +85 °C
Dimensions:1.6 x 1.0 x 0.5 mm
Tolerance:±20 ppm
Load Capacitance :12.5 pF
Type :kHz Quartz
