201410-MC03
MICROCRYSTAL*Quartz*20ppm-40+85°C*9pF*T&R*RoHS CM8V-T1A*32.768 KHz*2.0x1.2x0.6 mm*TAQC*
Manufacturer Item No.:
201410-MC03
Item number:
Q.032768CM8VT1AA+CT0
Add to Favorites

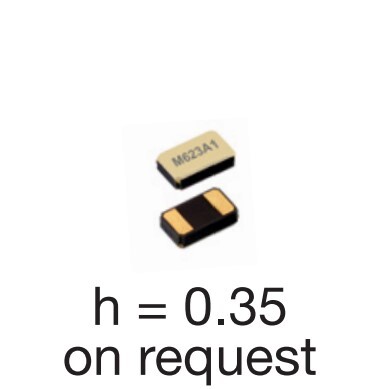

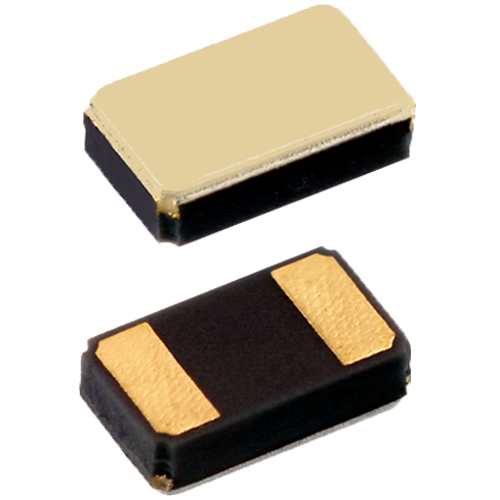

CM8V-T1A is a low frequency SMT Quartz Crystal Unit that incorporates a tuning fork Quartz Crystal Resonator. It operates under vacuum in a hermetically sealed ceramic package with metal lid.
Features
- Ultra small size: 2.0 × 1.2 × 0.60 mm
- Ultra small size, low profile, lightweight (4.6 mg)
- Outstanding hermetic sealing with gold-tin preform
- High stability and low aging guaranteed by hermetic sealing
- Available for extended operating temperature range
- High shock and vibration resistant
- 100% Pb-free, RoHS-compliant
- Automotive qualification according to AEC-Q200 available
| Form factor: | 2012 |
|---|---|
| Frequency : | 32.768 kHz |
| Temperature: | -40 to +85 °C |
| Dimensions: | 2.0 x 1.2 x 0.6 mm |
| Tolerance: | ±20 ppm |
| Load Capacitance : | 9 pF |
| Type : | kHz Quartz |
