202627-MC01

MICROCRYSTAL*Quartz*20ppm-40+85°C*6pF*T&R*RoHS CM8V-T1A*32.768 KHz*2.0x1.2x0.6 mm* TAQC
Manufacturer Item No.:
202627-MC01
Item number:
Q.032768CM8VT1AA+6T0
In Stock.
Usually ships in 1 to 3 days
Add to Favorites

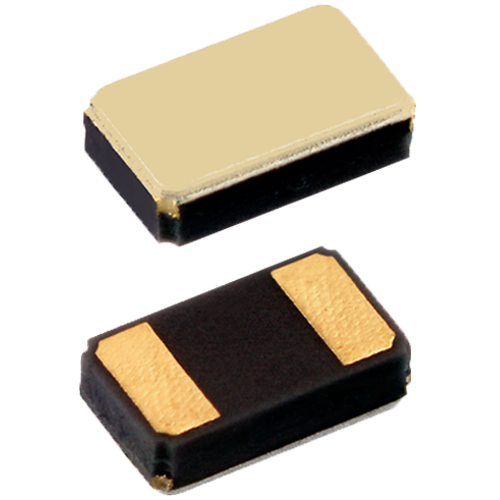

CM8V-T1A is a low frequency SMT Quartz Crystal Unit that incorporates a tuning fork Quartz Crystal Resonator. It operates under vacuum in a hermetically sealed ceramic package with metal lid.
Features
  • Ultra small size: 2.0 × 1.2 × 0.60 mm
  • Ultra small size, low profile, lightweight (4.6 mg)
  • Outstanding hermetic sealing with gold-tin preform
  • High stability and low aging guaranteed by hermetic sealing
  • Available for extended operating temperature range
  • High shock and vibration resistant
  • 100% Pb-free, RoHS-compliant
  • Automotive qualification according to AEC-Q200 available
Form factor:2012
Frequency :32.768 kHz
Temperature:-40 to +85 °C
Dimensions:2.0 x 1.2 x 0.6 mm
Tolerance:±20 ppm
Load Capacitance :6 pF
Type :kHz Quartz
