201571-MG01

MICROCRYSTAL*Quartz*20ppm*-40+125°C*9pF*T&R*(RoHS) CM7V-T1A*32.768 KHz*3.2x1.5x0.65 mm* TBQA*AECQ200*
Manufacturer Item No.:
201571-MG01
Item number:
Q.032768CM7VT1AA+CTA
In Stock.
Usually ships in 1 to 3 days
Add to Favorites

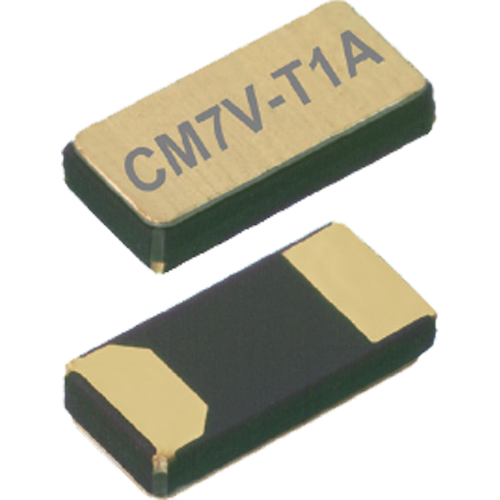

CM7V-T1Ais a low frequency SMT Quartz Crystal Unit that incorporates a tuning fork Quartz Crystal Resonator. It operates under vacuum in a hermetically sealed ceramic package with metal lid.
Features
  • Ultra small size: 3.2 × 1.5 × 0.65 mm
  • Outstanding hermetic sealing with gold-tin preform
  • High stability and low aging guaranteed by hermetic sealing
  • Available for extended operating temperature range
  • Lightweight: 10.3 mg
  • High shock and vibration resistant
  • 100% Pb-free, RoHS-compliant
  • Automotive qualification according to AEC-Q200 available
Form factor:3215
Frequency :32.768 kHz
Temperature:-40 to +85 °C
Dimensions:3.2 x 1.5 x 0.65 mm
Tolerance:±20 ppm
Load Capacitance :9 pF
Automotive:AEC-Q200
Type :kHz Quartz
