201676-MG03
MICROCRYSTAL*Quartz*20ppm*-40+125°C*12.5pF*T&R* CM7V-T1A*32.768 KHz*3.2x1.5x0.65 mm*T&R3000* TBQC
Manufacturer Item No.:
201676-MG03
Item number:
Q.032768CM7VT1AA+0TC
Add to Favorites

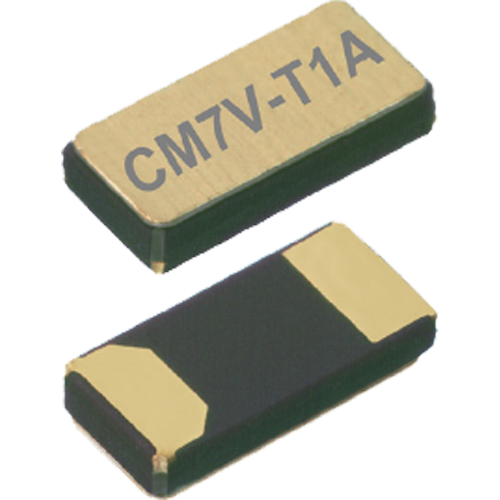

CM7V-T1Ais a low frequency SMT Quartz Crystal Unit that incorporates a tuning fork Quartz Crystal Resonator. It operates under vacuum in a hermetically sealed ceramic package with metal lid.
Features
- Ultra small size: 3.2 × 1.5 × 0.65 mm
- Outstanding hermetic sealing with gold-tin preform
- High stability and low aging guaranteed by hermetic sealing
- Available for extended operating temperature range
- Lightweight: 10.3 mg
- High shock and vibration resistant
- 100% Pb-free, RoHS-compliant
- Automotive qualification according to AEC-Q200 available
| Form factor: | 3215 |
|---|---|
| Frequency : | 32.768 kHz |
| Temperature: | -40 to +85 °C |
| Dimensions: | 3.2 x 1.5 x 0.65 mm |
| Tolerance: | ±20 ppm |
| Load Capacitance : | 12.5 pF |
| Type : | kHz Quartz |
