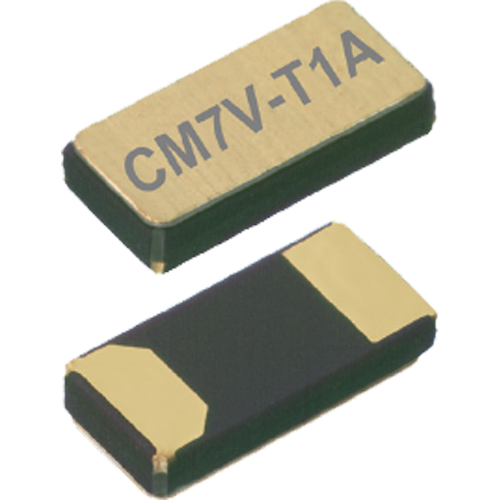

CM7V-T1Ais a low frequency SMT Quartz Crystal Unit that incorporates a tuning fork Quartz Crystal Resonator. It operates under vacuum in a hermetically sealed ceramic package with metal lid.
Features
- Ultra small size: 3.2 × 1.5 × 0.65 mm
- Outstanding hermetic sealing with gold-tin preform
- High stability and low aging guaranteed by hermetic sealing
- Available for extended operating temperature range
- Lightweight: 10.3 mg
- High shock and vibration resistant
- 100% Pb-free, RoHS-compliant
- Automotive qualification according to AEC-Q200 available
Form factor: | 3215 |
---|---|
Frequency : | 32.768 kHz |
Temperature: | -40 to +85 °C |
Dimensions: | 3.2 x 1.5 x 0.65 mm |
Tolerance: | ±20 ppm |
Load Capacitance : | 12.5 pF |
Automotive: | AEC-Q200 |
Type : | kHz Quartz |
