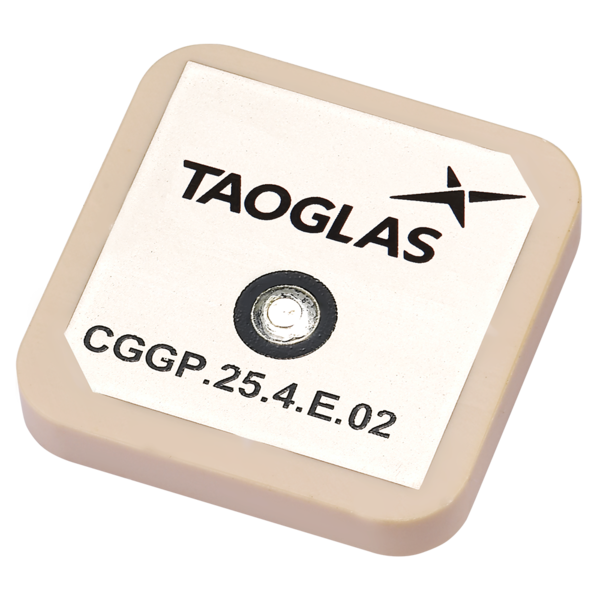

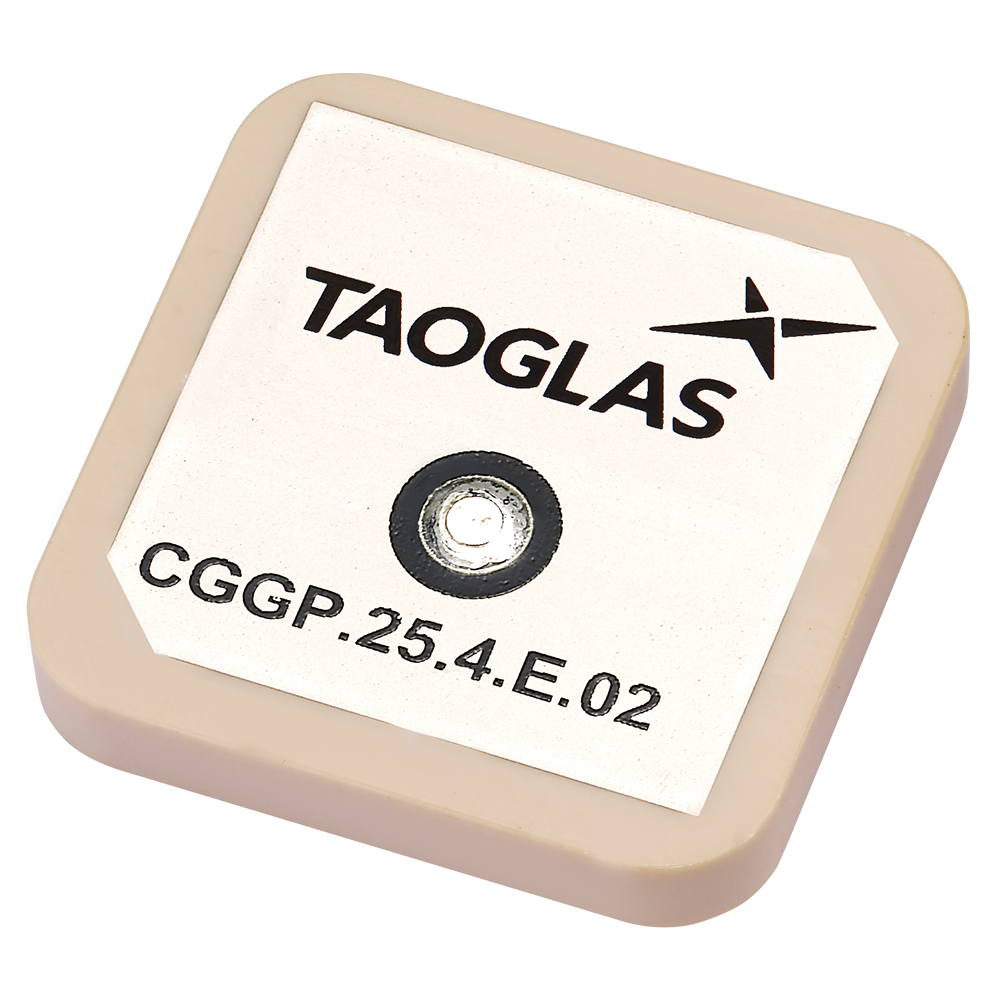

CGGP.25.4.E.02
Taoglas*CGGP.25.4.E.02*passive GNSS Patch*25.1 x 25.1 x 4mm*-40 to +85 °C*Tray
Manufacturer Item No.:
CGGP.25.4.E.02
Item number:
TGCGGP254E02
from 1 pieces
5,72 € / 1 pieces
from 100 pieces
5,33 € / 1 pieces
Add to Favorites
High-Efficiency Antenna for GPS and RTK
The CGGP.25.4.E.02 is a is a high-efficiency antenna for GPS and RTK applications. The 25*25*4mm embedded ceramic GPS/GLONASS/GALILEO Patch antenna. It features a double resonance design at GPS/GALILEO and GLONASS bands, 1575.42 MHz, and 1602 MHz respectively. This antenna has been tuned for a center position on a 70mm*70mm ground plane. Return loss is -28 dB at 1575.42MHz and -22 dB at GLONASS. Overall the antenna has greater than 60% efficiency.| RF Technology: | passive GNSS |
|---|---|
| Form factor: | SMD |
| RF Bands: | L1 |
| Cable length: | 0 |
| Dimensions: | 25.1 x 25.1 x 4mm |
| Temperature: | -40 to +85 °C |
| VSWR: | <2 |
| Gain: | 2 dBi |
