200371-MG01
MICROCRYSTAL*Quartz*20ppm*-40+85°C*12.5pF*T&R*RoHS CC5V-T1A*32.768 KHz*4.1x1.5x0.9 mm*TAQC
Manufacturer Item No.:
200371-MG01
Item number:
Q.032768CC5VT1AA+0T0
Add to Favorites

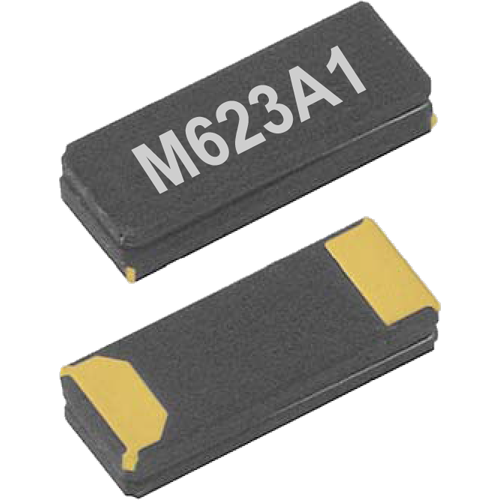

CC5V-T1A is a low frequency SMT Quartz Crystal Unit that incorporates a tuning fork Quartz Crystal Resonator. It operates under vacuum in a hermetically sealed ceramic package with ceramic lid.
Features
- Small size: 4.1 × 1.5 × 0.9 mm
- Mature product for harsh environments
- Outstanding hermetic sealing with gold-tin preform
- High stability and low aging guaranteed by hermetic sealing
- Available for extended operating temperature range
- High shock and vibration resistant
- 100% Pb-free, RoHS-compliant.
| Form factor: | 4115 |
|---|---|
| Frequency : | 32.768 kHz |
| Temperature: | -40 to +85 °C |
| Dimensions: | 4.1 x 1.5 x 0.9 mm |
| Tolerance: | ±20 ppm |
| Load Capacitance : | 12.5 pF |
| Type : | kHz Quartz |
