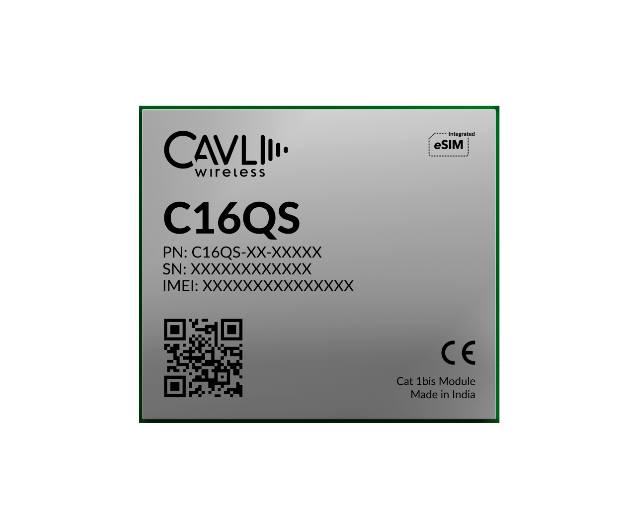

C16QS-WW-GNAN
CAVLI*C16QS*LTE Cat.1bis module*GNSS (L1)
LGA*26.5x22.5x2.3mm*-30 to +85°C
LGA*26.5x22.5x2.3mm*-30 to +85°C
Manufacturer Item No.:
C16QS-WW-GNAN
Item number:
C16QS-WW-GNAN
Choose Variant:
C16QS - Global, GNSS, no eSIM
Add to Favorites
C16QS is a series of LTE Cat 1bis modules that comply with 3GPP release 14 specifications, specifically designed for IoT and M2M applications. It offers support for optional integrated GNSS, making it well-suited for location tracking applications. Additionally, it provides the option of an integrated eSIM, enabling global connectivity through the Cavli Hubble Device and connectivity management platform.
The C16QS module is ideal for IoT solution makers interested in switching from legacy 2G and 3G solutions to LTE. It has enhanced tracking features that process GPS data on the edge, independent LTE and GNSS power supply and sleep features, and low power modes, making it ideal for applications such as asset tracking, POS, remote monitoring, and energy metering.
The C16QS module is available in five variants tailored for specific regions: C16QS-EA for EMEA and APAC regions, C16QS-NA for the North American region, C16QS-LA for the Latin American region, C16QS-AN for the Australia and New Zealand regions, C16QS-WW for Global use case. It maintains pin compatibility with Cavli C42GM and C42QM modules.
The C16QS module is ideal for IoT solution makers interested in switching from legacy 2G and 3G solutions to LTE. It has enhanced tracking features that process GPS data on the edge, independent LTE and GNSS power supply and sleep features, and low power modes, making it ideal for applications such as asset tracking, POS, remote monitoring, and energy metering.
The C16QS module is available in five variants tailored for specific regions: C16QS-EA for EMEA and APAC regions, C16QS-NA for the North American region, C16QS-LA for the Latin American region, C16QS-AN for the Australia and New Zealand regions, C16QS-WW for Global use case. It maintains pin compatibility with Cavli C42GM and C42QM modules.
Features
- Global and Local versions
- Wi-Fi scanning support
- Power Saving Modes
- optional independent GNSS Support
- optional eSIM
| Cellular Regions: | Multi-Region |
|---|---|
| Datarate: | Cat. 1bis (10 Mbit/s DL, 5 Mbit/s UL) |
| LTE Bands: | 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 25, 26, 28, 38, 40, 41, 66 |
| Wi-Fi Scan: | Yes |
| GNSS supported: | GPS / BeiDou |
| GNSS Bands: | L1 |
| Flash: | 4096 kByte |
| RAM: | 1.25 MB |
| UART: | 3 |
| USB: | 1 |
| I2C: | 1 |
| I2S: | 1 |
| SPI: | 1 |
| GPIO: | 4 |
| Voltage: | 3.1 - 4.5 VDC |
| Temperature: | -30 to +85°C |
| Dimensions: | 26.5 x 22.5 x 2.3 mm |
