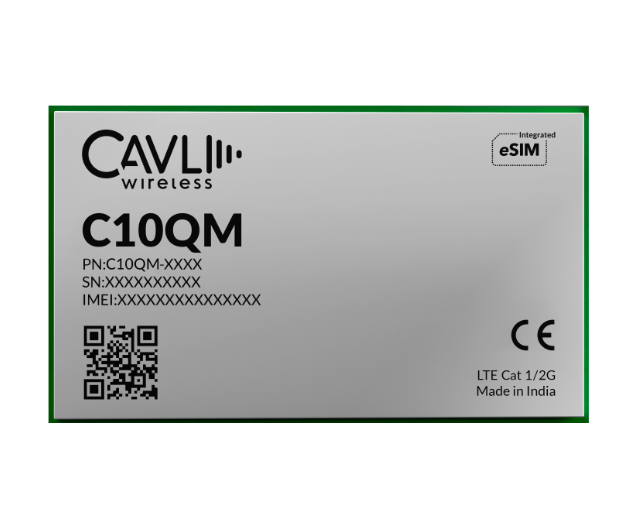

C10QM-EAJ-24GNN
CAVLI*C10QM*LTE Cat.1/2G module*2Gb RAM+4Gb NAND
LGA*37x21.8x2.8mm*-30/+85°C
LGA*37x21.8x2.8mm*-30/+85°C
Manufacturer Item No.:
C10QM-EAJ-24GNN
Item number:
C10QM-EAJ-24GNN
Add to Favorites
The C10QM has been developed within the Cavli portfolio as part of a series of LTE Cat 1 modules that adhere to 3GPP release 10. With its LGA form factor, it offers pin compatibility with the C10GS LTE Cat 1/Cat 4 and C20QM LTE Cat 4 modules, allowing for flexible migration and interoperability.
The C10QM module includes in-built GNSS featuring Qualcomm® IZat™ location technology Gen8C Lite, ensuring accurate and dependable positioning via GPS, GLONASS, BeiDou/Compass, Galileo, and QZSS. Additionally, it offers support for VoLTE, and SMS over IMS/SG/CS, as well as compatibility with various Internet protocols and standard industry interfaces that guarantee unbridled accessibility.
The module comes in two variants:
C10QM-EA for the Europe and Asia market, and
C10QM-NA for the North America market.
Additionally, with the help of the optional integrated eSIM powered by Cavli Hubble platform, the global connectivity on offer reduces time required to market.
The C10QM module includes in-built GNSS featuring Qualcomm® IZat™ location technology Gen8C Lite, ensuring accurate and dependable positioning via GPS, GLONASS, BeiDou/Compass, Galileo, and QZSS. Additionally, it offers support for VoLTE, and SMS over IMS/SG/CS, as well as compatibility with various Internet protocols and standard industry interfaces that guarantee unbridled accessibility.
The module comes in two variants:
C10QM-EA for the Europe and Asia market, and
C10QM-NA for the North America market.
Additionally, with the help of the optional integrated eSIM powered by Cavli Hubble platform, the global connectivity on offer reduces time required to market.
Features
- integrated GNSS (L1)
- optional integrated eSIM
- integrated MIPI-DBI Interface
- 2G Fallback
- openSDK support
- DFOTA available
- mPCIe version available
| Cellular Regions: | Europe, Asia, Japan |
|---|---|
| Datarate: | Cat 1 (10 Mbit/s DL, 5 Mbit/s UL) |
| LTE Bands: | 1, 3, 5, 7, 8, 18, 19, 20, 26, 28, 38, 40, 41 |
| GNSS supported: | GPS / QZSS, Galileo, BeiDou, GLONASS |
| GNSS Bands: | L1 |
| Flash: | 512 MB |
| RAM: | 256 MB |
| UART: | 3 |
| USB: | 1 |
| SDIO: | 1 |
| I2C: | 1 |
| SPI: | 1 |
| GPIO: | 9 |
| Voltage: | 3.6 - 4.5 VDC |
| Temperature: | -30 to +85°C |
| Dimensions: | 31 x 21.8 x 2.8 mm |
