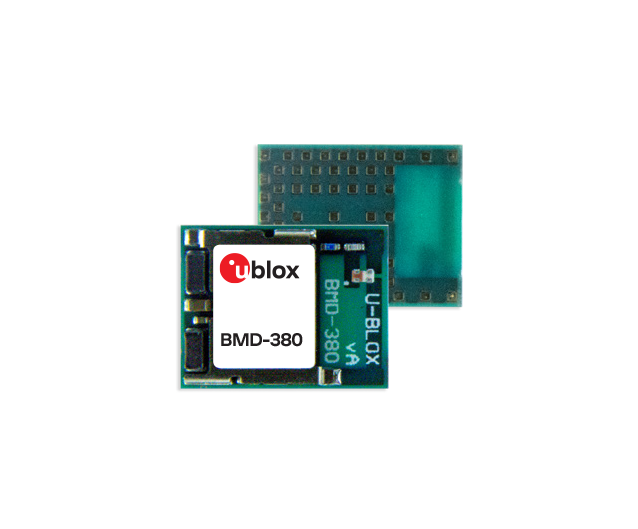

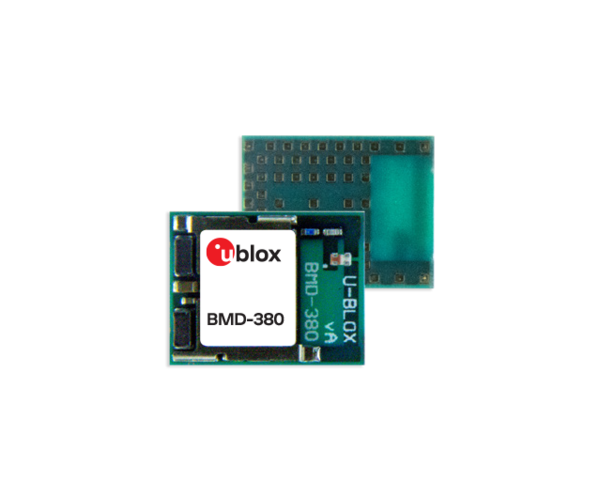

BMD-380-A-R
u-blox*BT 5.0 LE stand alone*integr. antenna open CPU*256kB RAM*nRF52840*7.5x9.5x1.5mm
Manufacturer Item No.:
BMD-380-A-R
Item number:
BMD-380-A-R
from 100 pieces
9,17 € / 1 pieces
Add to Favorites
- Powerful, ultra-efficient 64 MHz 32-bit Arm® Cortex®-M4 with FPU, 1 MB Flash, and 256 kB RAM
- Miniature footprint of 7.5 x 9.5 mm to fit the most compact designs
- Bluetooth 5 long range support (Coded PHY)
- USB 2.0 and built-in DC-DC converter for direct USB / Li-Ion power
- Hardware cryptographic unit for secure boot and over-the-air updates
- Integrated chip antenna
| Form factor: | BMD |
|---|---|
| Voltage: | 1.7 - 5.5 VDC |
| Chip: | nRF52840 |
| Bluetooth Standard: | v5.0 (Bluetooth Low Energy) |
| max. Range: | 500 m |
| Antenna Option: | Internal antenna |
| Temperature: | -40 to +85 °C |
| Dimensions: | 9.5 x 7.5 x 1.5 mm |
| UART: | 2 |
| USB: | 1 |
| GPIO: | 44 |
| I2S: | 1 |
| SPI: | 4 |
| TWI: | 2 |
| S/W Features: | Bluetooth high speed (LE 2M PHY), Bluetooth mesh, FOTA, Simultaneous GATT server and client, Supports customer applications |
