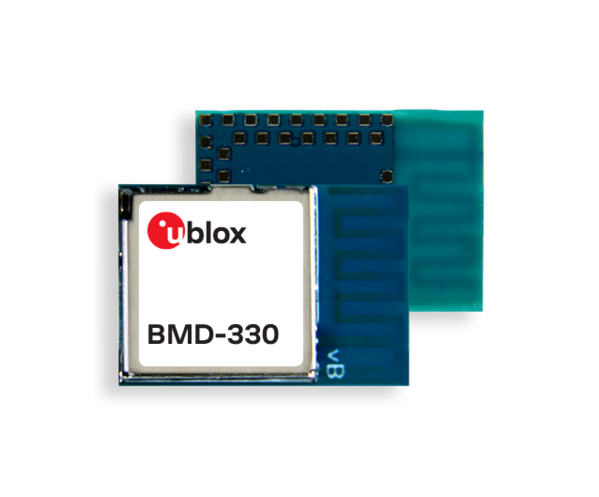

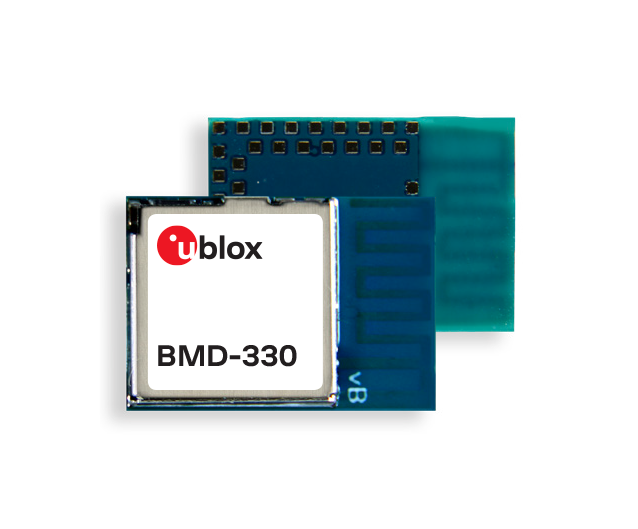

BMD-330-A-R
u-blox*BT 5 LE stand alone*integr. antenna open CPU*24kB RAM*nRF52810*9.8x14.0x1.9mm
Manufacturer Item No.:
BMD-330-A-R
Item number:
BMD-330-A-R
from 100 pieces
3,83 € / 1 pieces
Add to Favorites
- Supports the key Bluetooth 5.0 features of high throughput and increased broadcast capacity
- Powerful and ultra-efficient 64 MHz 32-bit Arm® Cortex®-M4 CPU with 192 kB Flash and 24 kB RAM
- Built-in DC-DC converter for low power operation
- Footprint compatible with BMD-300/301 and BMD-360 modules
| Form factor: | BMD |
|---|---|
| Voltage: | 1.7 - 3.6 VDC |
| Chip: | nRF52810 |
| Bluetooth Standard: | v5.0 (Bluetooth Low Energy) |
| max. Range: | 200 m |
| Antenna Option: | Internal antenna |
| Temperature: | -40 to +85 °C |
| Dimensions: | 14 x 9.8 x 1.9 mm |
| UART: | 1 |
| GPIO: | 32 |
| SPI: | 1 |
| TWI: | 1 |
| S/W Features: | Bluetooth high speed (LE 2M PHY), Bluetooth mesh, FOTA, Simultaneous GATT server and client, Supports customer applications |
