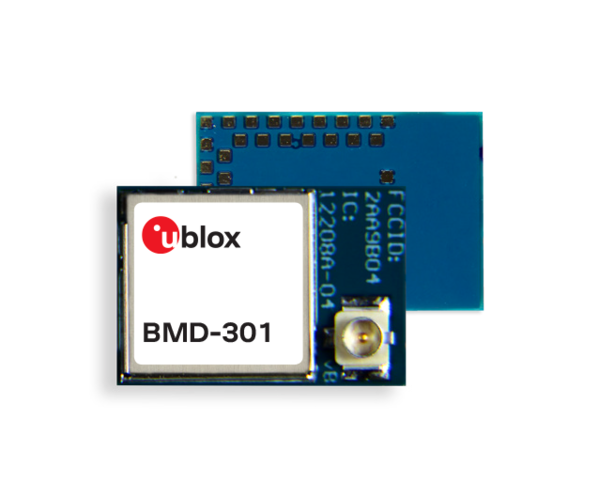

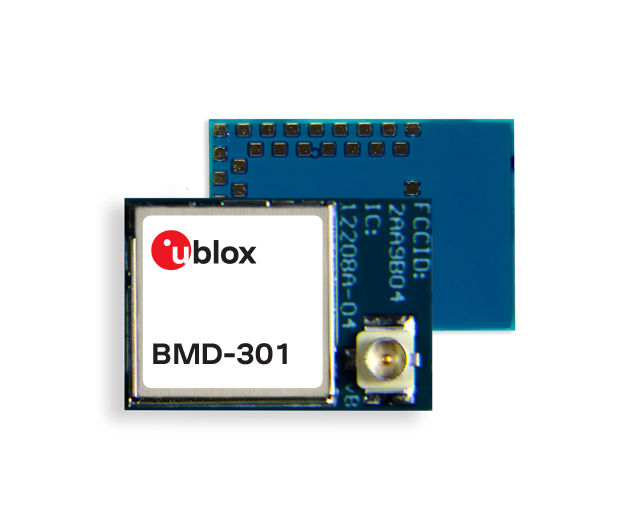

BMD-301-A-R

u-blox*BT 5 LE stand alone*antenna pin (U.FL) open CPU*64kB RAM*nRF52832*9.8x14.0x1.9mm
Manufacturer Item No.:
BMD-301-A-R
Item number:
BMD-301-A-R
from 100 pieces 6,55 € / 1 pieces
6,55 € / 1 pieces
Orderable, delivery time approx. 8 weeks
plus Shipping and VAT
Usually ships in 1 to 3 days
Add to Favorites
  • Powerful, ultra-efficient 64 MHz 32-bit Arm® Cortex®-M4 with FPU, 512 kB Flash, and 64 kB RAM
  • Secure Bootloader (encrypted over-the-air updates) with Nordic DFU
  • Transmitter certifications and compliances
  • BMD-300 and BMD-301 are footprint compatible with BMD-34x modules
Form factor:BMD
Voltage:1.7 - 3.6 VDC
Chip:nRF52832
Bluetooth Standard:v5.0 (Bluetooth Low Energy)
max. Range:400 m
Antenna Option:U.FL connector
Temperature:-40 to +85 °C
Dimensions:14 x 9.8 x 1.9 mm
UART:1
GPIO:32
I2S:1
SPI:3
TWI:2
S/W Features:Bluetooth high speed (LE 2M PHY), Bluetooth mesh, FOTA, Simultaneous GATT server and client, Supports customer applications
