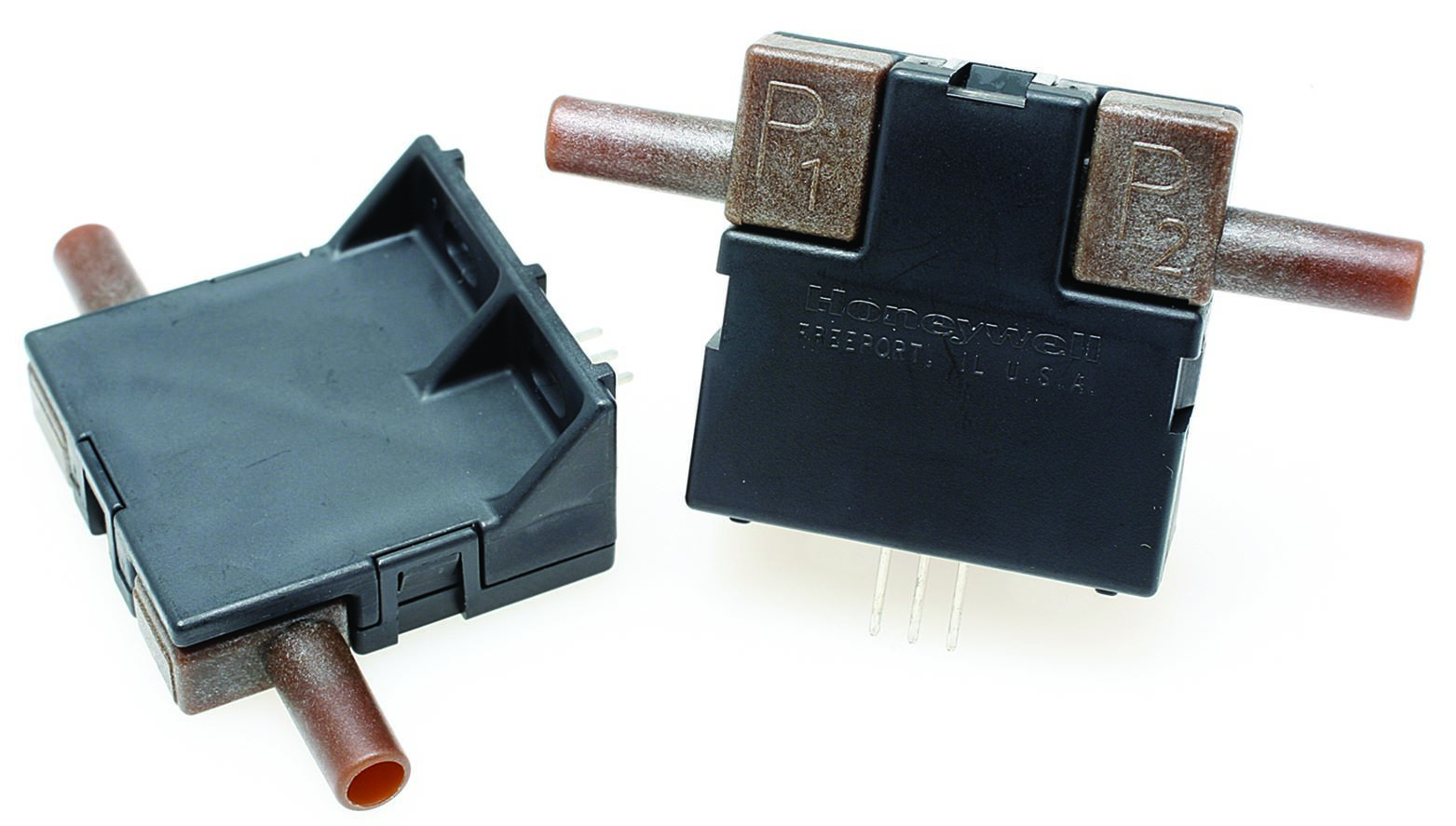

Product description
Like the AWM2000 Series, the dual Wheatstone bridges control airflow measurement. The AWM3000 Series is amplified: therefore, it can be used to increase the gain and to introduce voltage offsets to the sensor output. The heater control circuit and the sensing bridge supply circuit are on board the package.
AWM Series Microbridge Mass Airflow Sensors are not designed to sense liquid flow and will be damaged by liquid flow through the sensor.
Series: | AWM3000 |
---|---|
Flow Rate: | +1000 sccm |
Signal Conditioning: | Amplified |
Output Type: | analog |
Temperature: | -25 to +85°C |
Power Consumption: | 50 mW typ |
Port Style: | Straigt |
Technology: | silicon die |
Media compatibility: | dry gas only |
