ANNA-B402-00B
u-blox*BT 5.1 LE module*int.antenna*openCPU nRF52833*6.5x6.5x1.2mm(SiP)*-40/+105°C*500pcs/reel
Manufacturer Item No.:
ANNA-B402-00B
Item number:
ANNA-B402-00B
from 1 pieces
6,10 € / 1 pieces
from 10 pieces
5,80 € / 1 pieces
from 50 pieces
5,71 € / 1 pieces
from 100 pieces
5,62 € / 1 pieces
from 250 pieces
5,53 € / 1 pieces
Add to Favorites

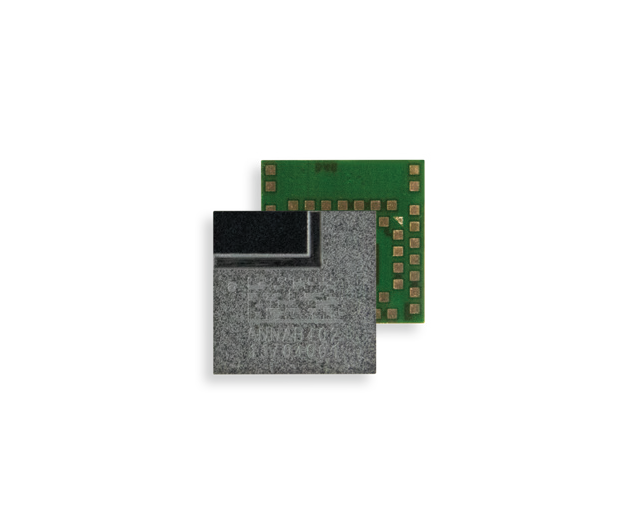

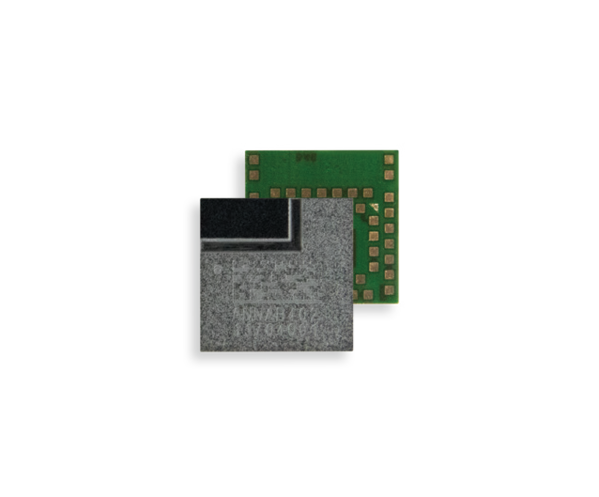

- Ultra compact SiP (6.5 x 6.5 x 1.2 mm) with integrated antenna
- Bluetooth 5.1, Bluetooth mesh, long range, Zigbee and Thread
- Direction finding support for indoor location
- Powerful open CPU architecture for customized applications
- Extended temperature range up to 105 °C
- Global certification
| Form factor: | ANNA |
|---|---|
| Voltage: | 1.7 - 3.6 VDC |
| Chip: | nRF52833 |
| Bluetooth Standard: | v5.1 (Bluetooth Low Energy) |
| max. Range: | 800 m |
| max. Throughput: | 1.4 Mbit/s |
| Antenna Option: | Internal antenna |
| Temperature: | -40 to +105 °C |
| Dimensions: | 6.5 x 6.5 x 1.2 mm |
| UART: | 2 |
| USB: | 1 |
| GPIO: | 33 |
| I2S: | 1 |
| SPI: | 4 |
| TWI: | 2 |
