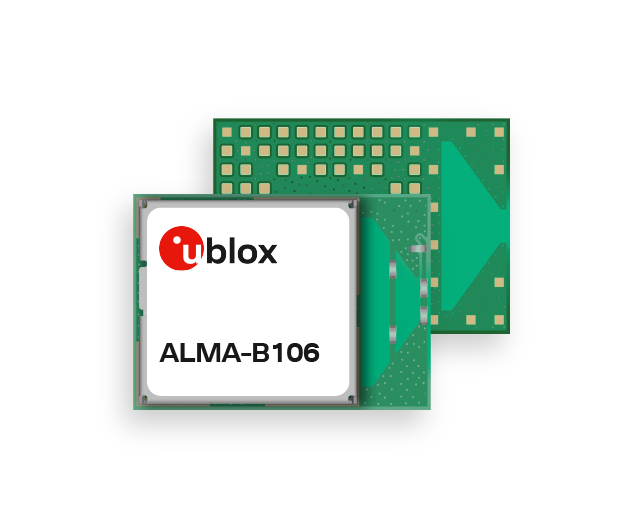

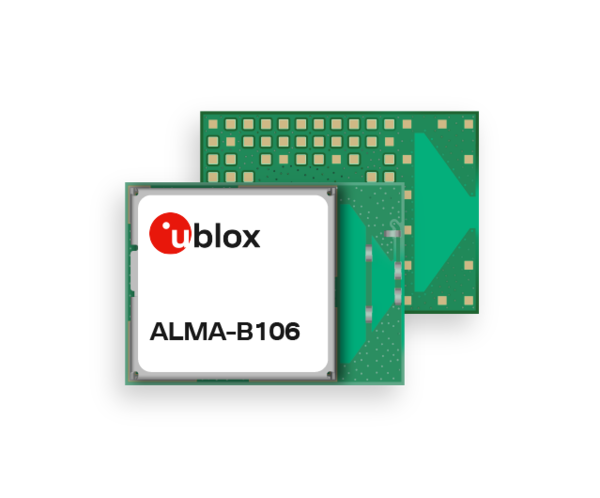

ALMA-B106-00B
u-blox*Bluetooth 5.4 LE stand-alone module
PCB-antenna*nRF54H20*10.4x14.3x1.9mm*Open CPU
PCB-antenna*nRF54H20*10.4x14.3x1.9mm*Open CPU
Manufacturer Item No.:
ALMA-B106-00B
Item number:
ALMA-B106-00B
Choose Variant:
ALMA-B106-00B - PCB Antenna
from 1 pieces
18,65 € / 1 pieces
from 10 pieces
17,35 € / 1 pieces
from 50 pieces
15,38 € / 1 pieces
from 100 pieces
13,82 € / 1 pieces
Add to Favorites
Stand-alone Bluetooth 5.4 Low Energy modules
High-performance quad-core wireless MCU with Bluetooth® 5.4, Thread, Matter, and NFC
- Highly efficient 4th generation Nordic SoC nRF54H20
- Superior processing power with dual Arm Cortex-M33 and dual RISC-V up to 320 MHz
- 2 MB non-volatile memory, 1 MB RAM
- High-performance internal antenna or antenna pin
- Compact size with access to all nRF54H20 features
- Global certification
Form factor: | ALMA |
---|---|
Bluetooth Standard: | V5.4 (Bluetooth Low Energy) |
Chip: | nRF54H20 |
max. Range: | 1400 m |
Antenna Option: | Embedded PCB antenna |
CPU Core: | Dual-core ARM® Cortex®-M33, Dual-core RISC-V |
Flash: | 2048 kByte (NVM) |
RAM: | 1 MByte |
Software: | openCPU |
Type : | stand-alone |
UART: | 8 |
USB: | 1 |
TWI: | 8 |
GPIO: | 64 |
SPI: | 8 |
I2S: | 2 |
Voltage: | 1.7 - 5.5 VDC |
Temperature: | -40 to +105 °C |
Dimensions: | 14.3 x 10.4 x 1.9 mm |
