401-55601-51

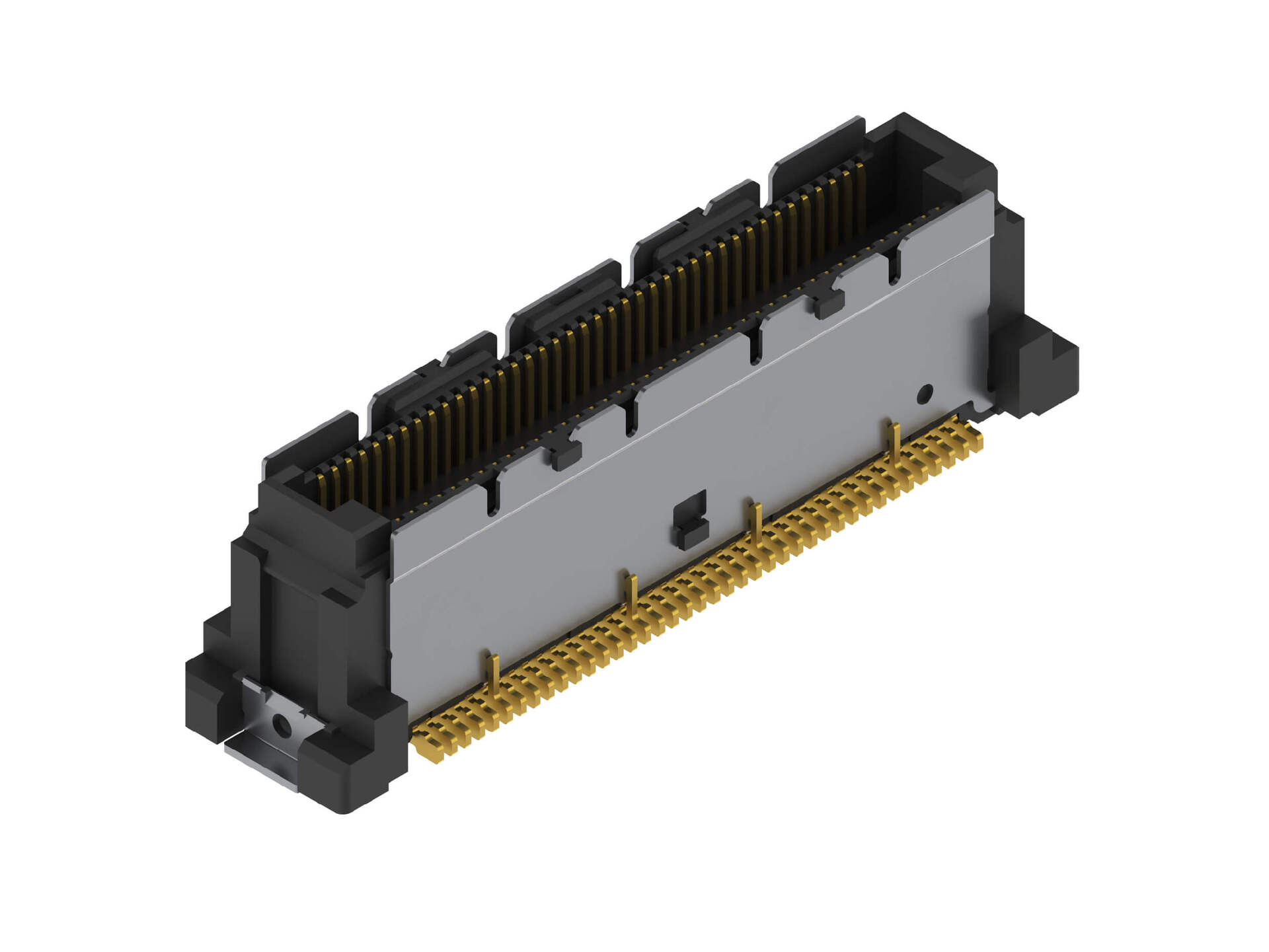

Colibri Plug 80, 8mm
Manufacturer Item No.:
401-55601-51
Item number:
SE-65-4015560151
from 600 pieces
3,36 € / 1 pieces
from 1200 pieces
3,15 € / 1 pieces
from 2400 pieces
2,94 € / 1 pieces
from 4800 pieces
2,76 € / 1 pieces
from 9600 pieces
2,59 € / 1 pieces
Add to Favorites
| Series: | Mezzanine board-to-board data transfer |
|---|---|
| Construction Form: | 0 |
| Type : | Plug |
| Mounting Angle: | Straight |
| No. Of Contacts: | 80 |
| Operational Current: | max. 0.5 A |
| Pitch: | 0.5 mm |
| Termination Technology: | SMT |
| Temperature: | -40°C to +125°C |
| Contact Material: | Copper alloy |
| Datarate: | 10 Gbit/s |
| Operational Voltage: | 50 VAC |
| Plating: | Au over Ni |
| Insulator Material: | LCP, UL 94 V-0 |
| CTI value / IEC 60112: | 125 |
| Mating Force: | max. 0.9 N per Pin |
| Separating Force : | min. 0.1 N |
| Mating Cycles: | 30 |
| Resistance: | max. 75 mOhm |
| Clearance: | 0.15 mm |
| Insulation Resistance: | > 100 MOhm |
| Test Voltage: | 200 VAC |
| Board-to-Board Distance: | 8 mm |
| Soldering Temperature: | 260°C nach J-STD-020 |
| Assembly Option: | Pick and Place |
