246-11300-15

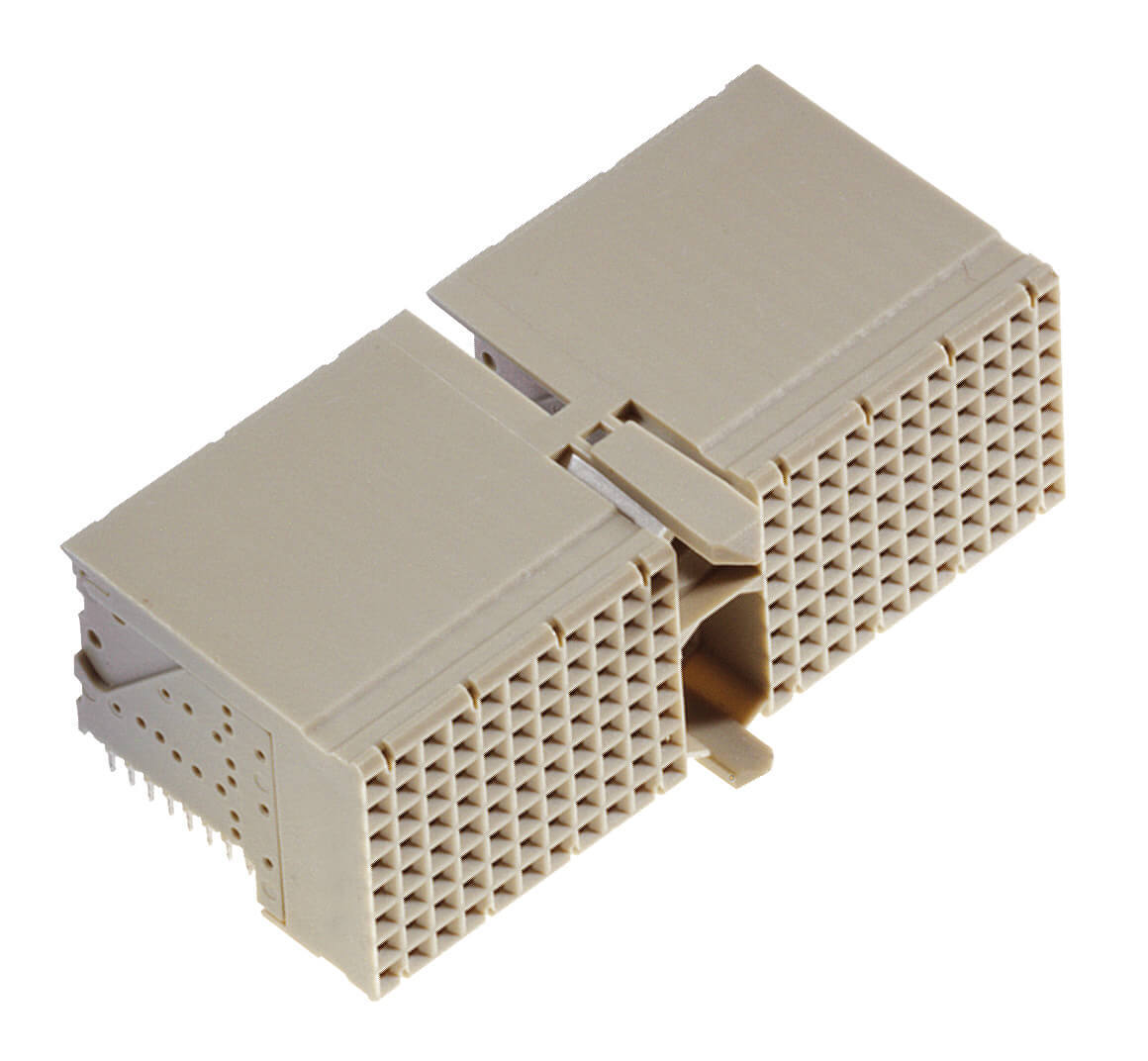

hm2.0 Female connector, type D
Manufacturer Item No.:
246-11300-15
Item number:
SE-65-2461130015
from 450 pieces
5,43 € / 1 pieces
from 990 pieces
4,92 € / 1 pieces
from 2430 pieces
4,28 € / 1 pieces
from 4950 pieces
3,97 € / 1 pieces
from 9990 pieces
3,71 € / 1 pieces
Add to Favorites
| Series: | Hard Metric Connectors |
|---|---|
| Construction Form: | D |
| Type : | Female |
| No. Of Contacts: | 176 |
| Rows: | 5 + 2 |
| Operational Current: | 1.5 A at +20°C, 1.0 A at +70°C |
| Performance Level: | 2 |
| Pitch: | 2.0 mm |
| Termination Technology: | Press-fit |
| Termination length: | 2.9 mm |
| Temperature: | -55°C to +125°C |
| Connector Standard: | IEC 61076-4-101 |
| Contact Material: | Bronze |
| Datarate: | 3,125 Gbit/s |
| PCB Thinkness: | min 1.44 mm |
| Insulator Material: | PBT glass filled, UL 94 V-0 |
| CTI value / IEC 60112: | 200 |
| Mating Force: | Contact: max. 0.75 N, Shielding: max. 1 N per Pin |
| Separating Force : | Contact: min. 0.15 N, Shielding: min. 0.15 N |
| Mating Cycles: | > 250 |
| Resistance: | max. 20 mOhm |
| Clearance: | 0.6 mm |
| Insulation Resistance: | min. 104 MOhm |
| Test Voltage: | 750 V r.m.s |
