244-23300-15

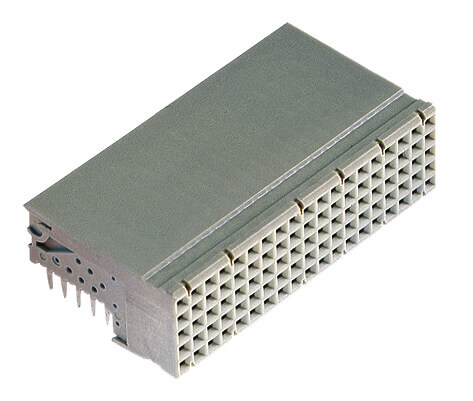

hm2.0 Female connector, type B19
Manufacturer Item No.:
244-23300-15
Item number:
SE-65-2442330015
from 504 pieces
3,63 € / 1 pieces
from 1008 pieces
3,29 € / 1 pieces
from 2520 pieces
2,86 € / 1 pieces
from 4872 pieces
2,66 € / 1 pieces
from 9912 pieces
2,48 € / 1 pieces
Add to Favorites
| Series: | Hard Metric Connectors |
|---|---|
| Construction Form: | B19 |
| Type : | Female |
| No. Of Contacts: | 95 |
| Rows: | 5 + 2 |
| Operational Current: | 1.5 A at +20°C, 1.0 A at +70°C |
| Performance Level: | 2 |
| Pitch: | 2.0 mm |
| Termination Technology: | Press-fit |
| Termination length: | 2.9 mm |
| Temperature: | -55°C to +125°C |
| Connector Standard: | IEC 61076-4-101 |
| Contact Material: | Bronze |
| Datarate: | 3,125 Gbit/s |
| PCB Thinkness: | min 1.44 mm |
| Insulator Material: | PBT glass filled, UL 94 V-0 |
| CTI value / IEC 60112: | 200 |
| Mating Force: | Contact: max. 0.75 N, Shielding: max. 1 N per Pin |
| Separating Force : | Contact: min. 0.15 N, Shielding: min. 0.15 N |
| Mating Cycles: | > 250 |
| Resistance: | max. 20 mOhm |
| Clearance: | 0.6 mm |
| Insulation Resistance: | min. 104 MOhm |
| Test Voltage: | 750 V r.m.s |
