124-60082-02

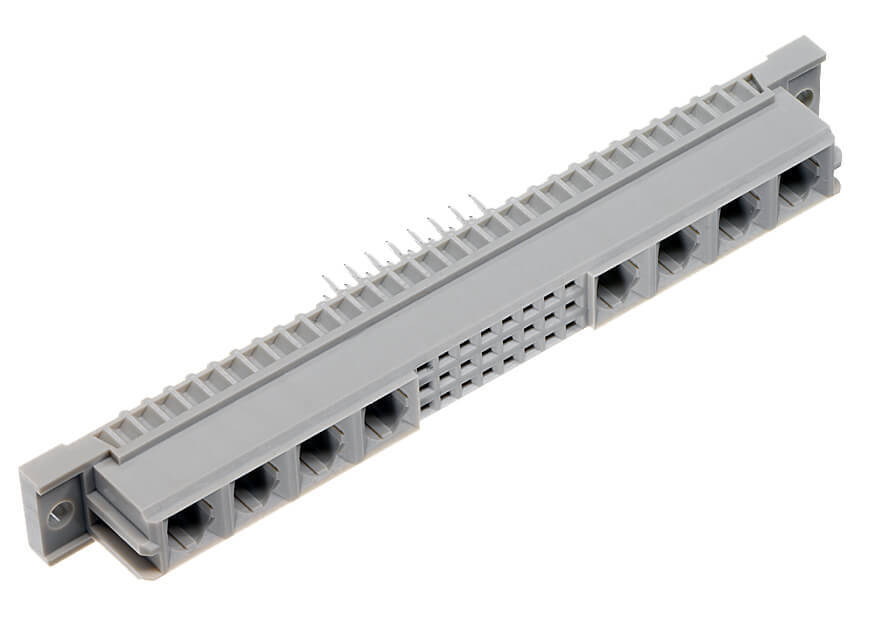

DIN 41612 Female straight, type M
Manufacturer Item No.:
124-60082-02
Item number:
SE-65-1246008202
from 600 pieces
52,14 € / 1 pieces
from 900 pieces
47,19 € / 1 pieces
from 2400 pieces
41,09 € / 1 pieces
from 4800 pieces
38,13 € / 1 pieces
from 9900 pieces
35,58 € / 1 pieces
Add to Favorites
| Series: | DIN 41612 |
|---|---|
| Construction Form: | M |
| Type : | Female |
| Mounting Angle: | Straight |
| No. Of Contacts: | 24 + 8 |
| Rows: | 3 |
| Operational Current: | 1.5 A |
| Performance Level: | 2 |
| Pitch: | 2.54 mm |
| Termination Technology: | Press-fit |
| Termination length: | 4.6 mm |
| Temperature: | -55°C to +125°C |
| Connector Standard: | IEC 60603-2 (DIN 41612) |
| Contact Material: | Copper alloy |
| PCB Thinkness: | min 1.44 mm |
| Insulator Material: | PBT glass filled UL 94 V-0 |
| CTI value / IEC 60112: | 200 |
| Mating Force: | < 23 N |
| Separating Force : | > 0.15 N |
| Mating Cycles: | 400 |
| Resistance: | < 20 mOhm |
| Clearance: | 1.2 mm |
| Test Voltage: | 1000 V |
