119-40065

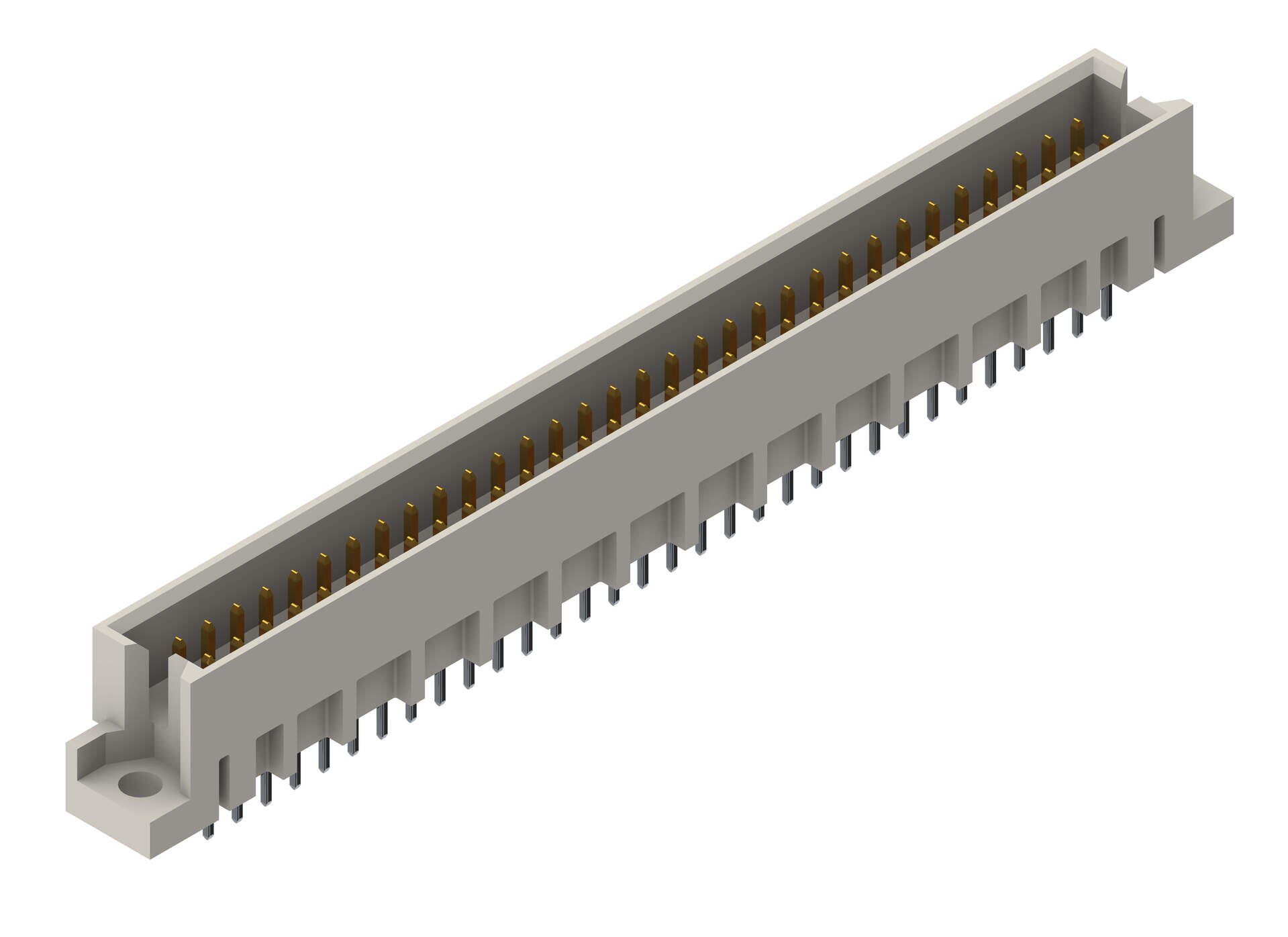

DIN 41612 Male straight, type Q
Manufacturer Item No.:
119-40065
Item number:
SE-65-11940065
from 476 pieces
4,23 € / 1 pieces
from 952 pieces
3,83 € / 1 pieces
from 2380 pieces
3,33 € / 1 pieces
from 4760 pieces
3,09 € / 1 pieces
from 9996 pieces
2,89 € / 1 pieces
Add to Favorites
| Series: | DIN 41612 |
|---|---|
| Construction Form: | Q |
| Type : | Male |
| Mounting Angle: | Straight |
| No. Of Contacts: | 64 |
| Rows: | 2 |
| Operational Current: | 1.5 A |
| Performance Level: | 2 |
| Pitch: | 2.54 mm |
| Termination Technology: | solder |
| Termination length: | 2.5 mm |
| Temperature: | -55°C to +125°C |
| Connector Standard: | IEC 60603-2 (DIN 41612) |
| Contact Material: | Copper alloy |
| Insulator Material: | PBT glass filled UL 94 V-0 |
| CTI value / IEC 60112: | 200 |
| Mating Force: | < 60 N |
| Separating Force : | > 0.15 N |
| Mating Cycles: | 400 |
| Resistance: | < 20 mOhm |
| Clearance: | 1.2 mm |
| Test Voltage: | 1000 V |
| Board-to-Board Distance: | 16.85 mm |
