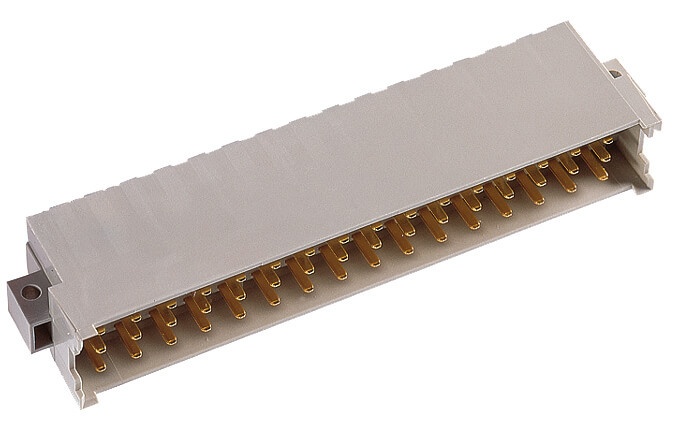

109-40014TH
DIN 41612 Male 90°, type F
Manufacturer Item No.:
109-40014TH
Item number:
SE-65-10940014TH
from 532 pieces
3,24 € / 1 pieces
from 1064 pieces
2,93 € / 1 pieces
from 2660 pieces
2,55 € / 1 pieces
from 4788 pieces
2,37 € / 1 pieces
from 9842 pieces
2,21 € / 1 pieces
Add to Favorites
| Series: | DIN 41612 |
|---|---|
| Construction Form: | F |
| Type : | Male |
| Mounting Angle: | Angled |
| No. Of Contacts: | 32 |
| Rows: | 3 |
| Operational Current: | 5.6 A |
| Performance Level: | 2 |
| Pitch: | 5.08 x 3.81 mm |
| Termination Technology: | THTR |
| Termination length: | 3 mm |
| Temperature: | -55°C to +125°C |
| Connector Standard: | IEC 60603-2 (DIN 41612) |
| Contact Material: | Copper alloy |
| Insulator Material: | PA glass filled UL 94 V-0 |
| CTI value / IEC 60112: | 600 |
| Mating Force: | < 50 N |
| Separating Force : | >0.2 N |
| Mating Cycles: | 400 |
| Resistance: | < 15 mOhm |
| Clearance: | K: 3.0 mm, L: 1.6 mm |
| Test Voltage: | 1550 V |
