108-40025

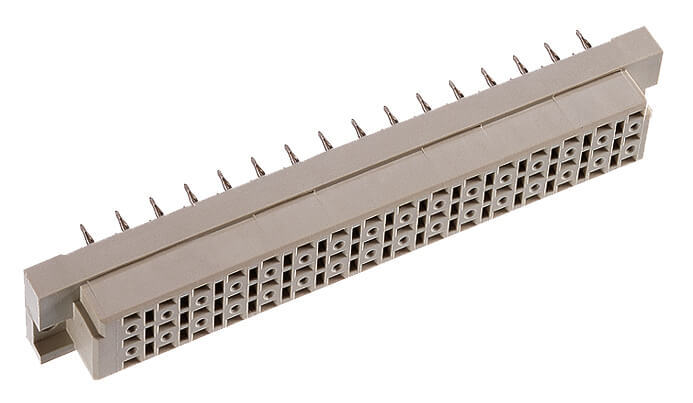

DIN 41612 Female straight, type E
Manufacturer Item No.:
108-40025
Item number:
SE-65-10840025
Add to Favorites
| Series: | DIN 41612 |
|---|---|
| Construction Form: | E |
| Type : | Female |
| Mounting Angle: | Straight |
| No. Of Contacts: | 32 |
| Rows: | 3 |
| Operational Current: | 5.6 A |
| Performance Level: | 2 |
| Pitch: | 5.08 mm |
| Termination Technology: | solder |
| Termination length: | 20 mm |
| Temperature: | -55°C to +125°C |
| Connector Standard: | IEC 60603-2 (DIN 41612) |
| Contact Material: | Copper alloy |
| Insulator Material: | PBT glass filled UL 94 V-0 |
| CTI value / IEC 60112: | 200 |
| Mating Force: | < 50 N |
| Separating Force : | > 0.15 N |
| Mating Cycles: | 400 |
| Resistance: | < 15 mOhm |
| Clearance: | 3.0 mm |
| Test Voltage: | 1500 V |
| Board-to-Board Distance: | 17.85 mm |
