106-40064

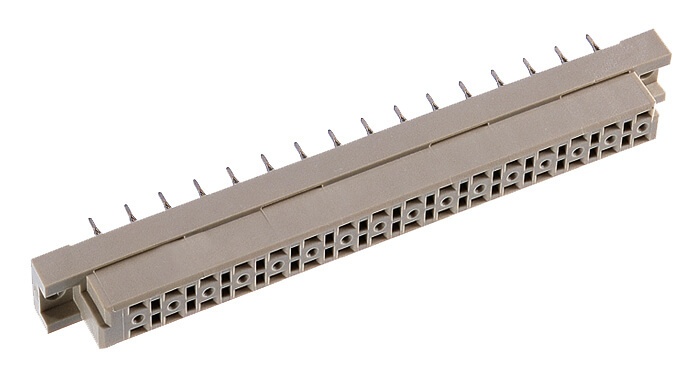

DIN 41612 Female straight, type D
Manufacturer Item No.:
106-40064
Item number:
SE-65-10640064
from 600 pieces
2,78 € / 1 pieces
from 900 pieces
2,52 € / 1 pieces
from 2400 pieces
2,19 € / 1 pieces
from 4800 pieces
2,03 € / 1 pieces
from 9900 pieces
1,90 € / 1 pieces
Add to Favorites
| Series: | DIN 41612 |
|---|---|
| Construction Form: | D |
| Type : | Female |
| Mounting Angle: | Straight |
| No. Of Contacts: | 32 |
| Rows: | 2 |
| Operational Current: | 5.6 A |
| Performance Level: | 2 |
| Pitch: | 5.08 mm |
| Termination Technology: | solder |
| Termination length: | 4 mm |
| Temperature: | -55°C to +125°C |
| Connector Standard: | IEC 60603-2 (DIN 41612) |
| Contact Material: | Copper alloy |
| Insulator Material: | PBT glass filled UL 94 V-0 |
| CTI value / IEC 60112: | 200 |
| Mating Force: | < 40 N |
| Separating Force : | > 0.15 N |
| Mating Cycles: | 400 |
| Resistance: | < 15 mOhm |
| Clearance: | 3.0 mm |
| Test Voltage: | 1500 V |
| Board-to-Board Distance: | 17.85 mm |
