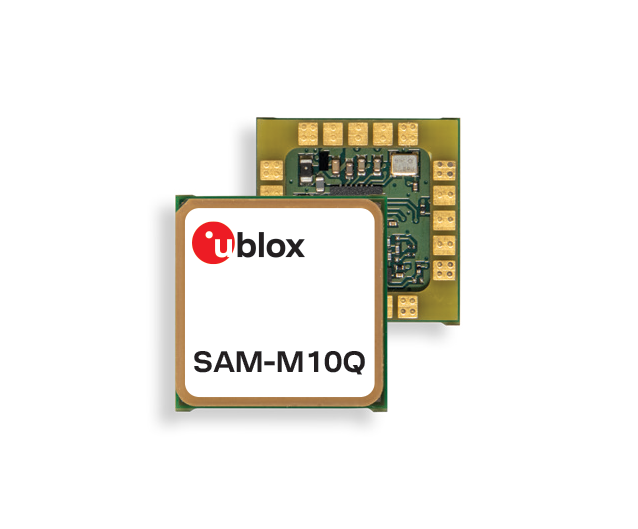

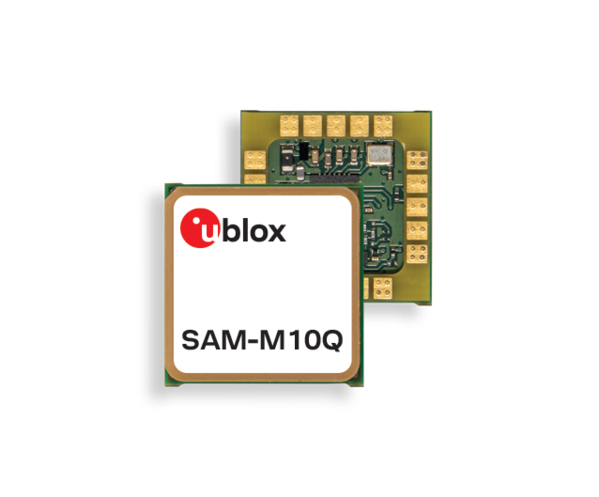

SAM-M10Q-00B
u-blox M10 concurrent GNSS LGA Antenna Module*TCXO*SAW*LNA*2.7-3.6V*15.5x15.5mm*250 pcs/reel
Manufacturer Item No.:
SAM-M10Q-00B
Item number:
SAM-M10Q-00B
from 1 pieces
16,72 € / 1 pieces
from 10 pieces
15,29 € / 1 pieces
from 50 pieces
13,38 € / 1 pieces
from 100 pieces
10,70 € / 1 pieces
Add to Favorites
Ultra-low-power GNSS antenna module for easiest integration
- Simple design-in with no RF expertise required
- Less than 38 mW power consumption without compromising GNSS performance
- Maximum position availability with 4 concurrent GNSS reception
- Advanced spoofing and jamming detection
- Pin-compatible with previous SAM-M8Q
| Form factor: | SAM |
|---|---|
| Antenna Option: | Internal patch antenna |
| Chip: | u-blox M10 |
| GNSS supported: | GPS / QZSS, Galileo, BeiDou, GLONASS |
| GNSS Bands: | L1 |
| GNSS Oscillator: | TCXO |
| Dimensions: | 15.5 x 15.5 x 6.3 mm |
| Temperature: | -40 to +85 °C |
| Voltage: | 2.7 - 3.6 VDC |
| UART: | 1 |
| I2C: | 1 |
